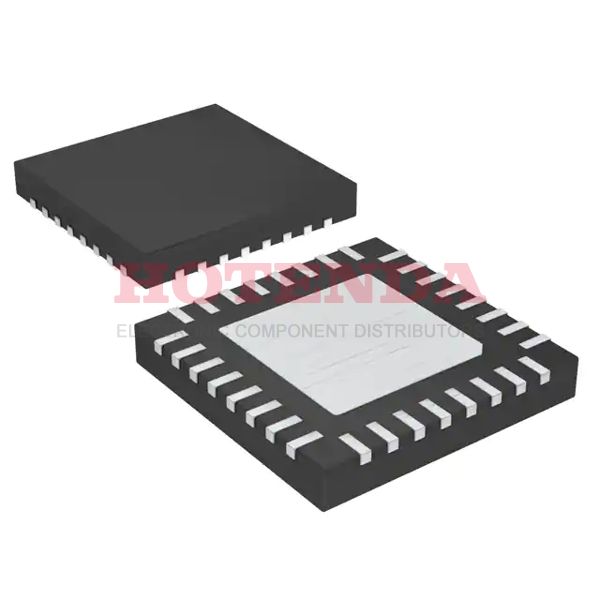

DS2726G+ Overview
It is appropriate for the 32-WQFN Exposed Pad package. POWER SUPPLY SUPPORT CIRCUIT is the analog IC that this power IC employs. There are 11 channels available. It has a total of 32 pins. It's packaged in a Tube case. Use Surface Mount to mount this electronic component. This electronic component is mounted in the way of Surface Mount. It is able to deliver the Multi-Function Controller functions. It is best for the electric part to operate temperature at the range of -20°C~85°C TA to deliver its performance. The battery chemistry of this electronic component includes Lithium-Ion. It is powered by a 5/50V volts. Keep in mind that this battery management IC should be set to 13V at all times. It is based on DS2726 family. The maximal supply voltage (Vsup) reaches 50V. The Vsup (supply voltage) must be greater than 5V. The maximum supply current (Isup) must not exceed 0.4mA.
DS2726G+ Features
Available in 32-WQFN Exposed Pad Package
with 32 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 13V
Supply Voltage-Max (Vsup) : 50V
DS2726G+ Applications
There are a lot of Maxim Integrated
DS2726G+ Battery Management ICs applications.
- Electric vehicles
- Electric cars
- Trucks
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
