Name: DS89C440-MNL
Brand: Maxim Integrated
SKU: DS89C440-MNL
Availability: InStock

new-10%

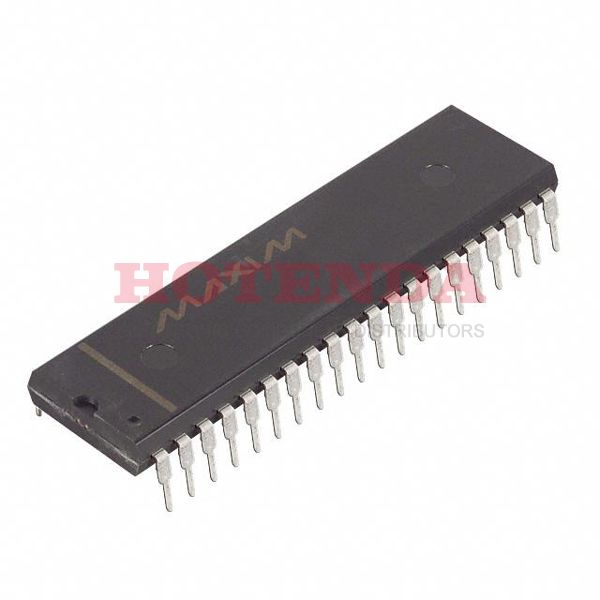

DS89C440-MNL

Manufacturer part number:DS89C440-MNL

Manufacturer:Maxim Integrated

Description:32KB 32K x 8 FLASH 8051 8-Bit Microcontroller 89C Series DS89C440 33MHz 5V 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:DS89C440-MNL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Surface Mount	NO
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	89C
Published	2006
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
ECCN Code	3A991.A.2
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.31.00.01
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	240
Supply Voltage	5V
Terminal Pitch	2.54mm
Reach Compliance Code	not_compliant
Frequency	33MHz
Time@Peak Reflow Temperature-Max (s)	20
Base Part Number	DS89C440
Pin Count	40
JESD-30 Code	R-PDIP-T40
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Supply Voltage-Min (Vsup)	4.5V
Interface	EBI/EMI, UART, USART
Memory Size	32kB
Oscillator Type	External
Number of I/O	32
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	Power-Fail Reset, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	EBI/EMI, SIO, UART/USART
Supply Current-Max	110mA
Bit Size	8
Access Time	33 μs
Has ADC	NO
DMA Channels	NO
PWM Channels	NO
DAC Channels	NO
Address Bus Width	16
External Data Bus Width	8
Length	52.075mm
Height Seated (Max)	5.08mm
Width	15.24mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

DS89C440-MNL Product Details

DS89C440-MNL Overview

40-DIP (0.600, 15.24mm)-packages are available. There are 32 I/O ports on this device. Device mounting type Through Hole is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the 89C series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. 8051 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 40 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number DS89C440 provides alternatives. This device is extremely efficient when operated at a frequency of 33MHz. Using the PWM channel NO, the device works with the motor. It has 40 pins in total.
