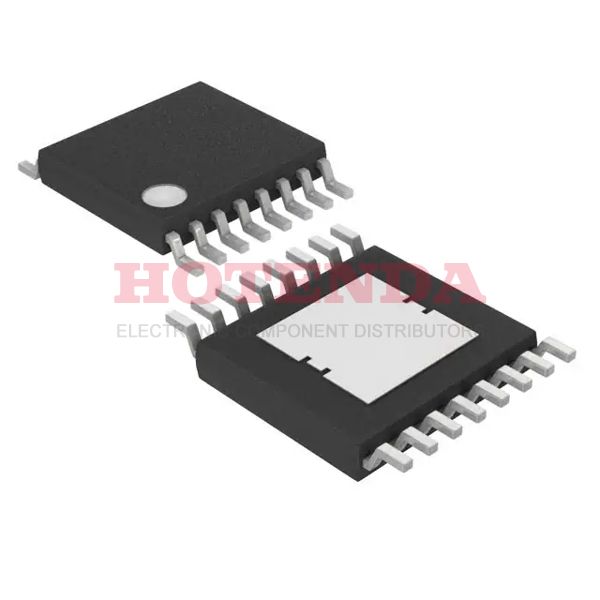

Name: MAX16935SAUE/V+GE
Brand: Maxim Integrated
SKU: MAX16935SAUE/V+GE
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Number of Pins	16
Weight	172.98879mg
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
Published	2015
Series	Automotive, AEC-Q100
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Power Dissipation	2.0888W
Function	Step-Down
Number of Outputs	1
Efficiency	98 %
Output Voltage	10V
Output Type	Adjustable (Fixed)
Max Output Current	3.5A
Operating Supply Voltage	36V
Min Supply Voltage	3.5V
Operating Supply Current	28μA
Output Configuration	Positive
Max Output Voltage	10V
Voltage - Output (Min/Fixed)	1V 5V
Topology	Buck
Frequency - Switching	220kHz~2.2MHz
Synchronous Rectifier	No
Min Output Voltage	1V
Voltage - Output (Max)	10V
RoHS Status	ROHS3 Compliant

MAX16935SAUE/V+GE Product Details

MAX16935SAUE/V+GE Overview

For optimal performance, this voltage regulator makes use of the Tube package. Space-saving 16-TSSOP (0.173, 4.40mm Width) Exposed Pad packages are available for this harley voltage regulator. The voltage regulator 12v has 1 outputs. DC DC switching regulators like this one generate Adjustable (Fixed) outputs on their output pins to handle the power management. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. This voltage regulator 12v should operate at a temperature of -40°C~125°C TJ when operating. This DC-DC switching regulator has a switching frequency of 220kHz~2.2MHz. The adjusting voltage regulator's output voltage (Min/Fixed) is 1V 5V. At 10V volts, voltage regulator can provide voltage. There are 16 pins that are used for the operation of the voltage regulator 12v. In order for this switching regulator to work properly, the output voltage should be at least 1VV. A 3.5A A maximum output current is required to meet the switching regulator operation requirements. By using 10V as the maximum output voltage, adjusting voltage regulator is easy to operate. With a maximum output voltage of 10V, DC DC switching regulator has a very high efficiency. As the name implies, this voltage regulator belongs to the Automotive, AEC-Q100 family of voltage regulators, and it is a type of switching DC-DC regulator. 36V is the supply voltage for this DC-DC switching regulator. A dc to dc voltage regulator's dc to dc voltage regulator's minimum supply voltage of 3.5V V ensures reliable performance. A 28μA supply current is required to power this voltage regulator.
