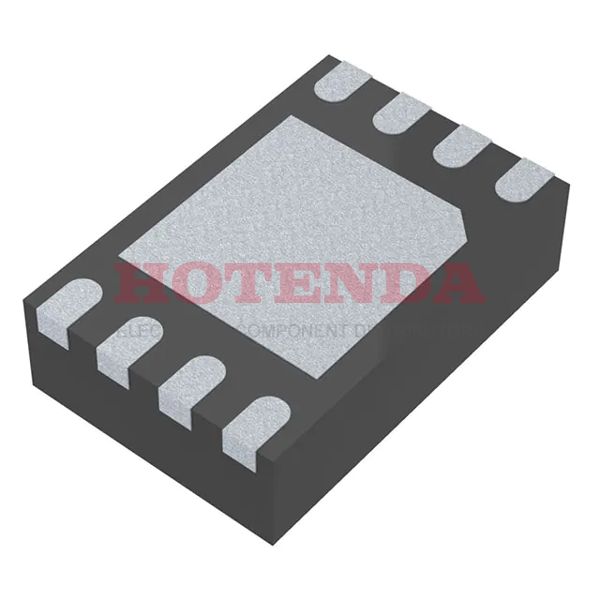

MAX17043G+U Overview
8-WFDFN Exposed Pad is the appropriate package for battery instrument. Analog IC POWER SUPPLY MANAGEMENT CIRCUIT is used in this power IC. The number of channels available is 1. In total, it has 8 pins. The case is labeled Strip. For mounting, use Surface Mount. In Surface Mount, this electronic component is mounted. It is capable of delivering the Battery Monitor functions. This electric part performs best at temperatures in the range of -20°C~70°C TA. There is Lithium Ion/Polymer in the battery chemistry of this electronic component. It is important to keep this battery management IC set to 3.6V at all times. The family MAX17043 is the basis for it. There must be a voltage higher than 2.5V (Vsup) on the supply. A voltage in the range of 4.5V is specified for this power management IC's operating supply voltage. The number ModelGauge™ corresponds to the series of the battery protector ic. It is possible to supply the battery management IC with a maximum current of 200nA. A supply current of 50μA volts is required to operate it.
MAX17043G+U Features
Available in 8-WFDFN Exposed Pad Package
with 8 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 3.6V
Output Voltage at the range of 400mV
MAX17043G+U Applications
There are a lot of Maxim Integrated
MAX17043G+U Battery Management ICs applications.
- Trucks
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
