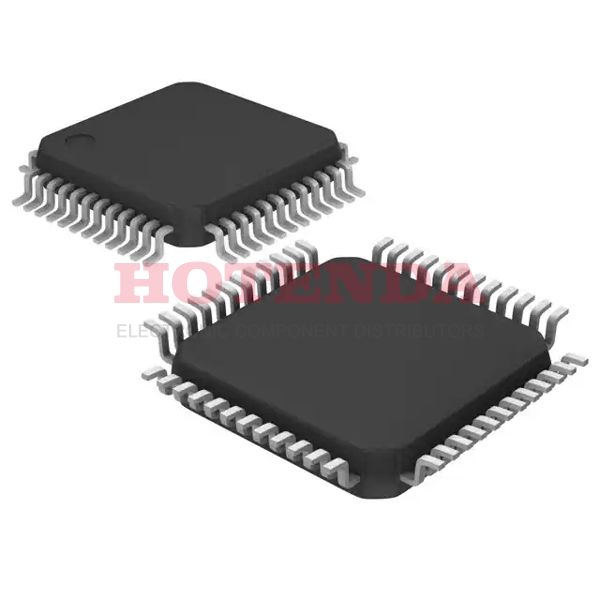

MAX5165NCCM+ Overview
There is a 48-LQFP case in which the instrumentation amplifier is packaged. There are two types of operational amplifiers in this circuit. As far as the packaging is concerned, buffer op amp is delivered in a Tray case. The number of terminations approaches 48. Linear amplifier has a total of 48 pins. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 10V. A total of 48 pins are present on the instrumentation amplifier. As far as the input offset voltage is concerned, linear amplifier rates at 5mV. The mounting type that is recommended for this electrical part is Surface Mount. Regarding the operating temperature of this device, instrumentation amplifier performs well at a temperature of 0°C~70°C . As long as the supply current of the chip does not exceed 36mA, this op amp ic can operate. On this instrumentation amplifier, there are 32 circuits that are connected together.
MAX5165NCCM+ Features
48 Pins
supply voltage of 10V
MAX5165NCCM+ Applications
There are a lot of Maxim Integrated MAX5165NCCM+ Instrumentational OP Amps applications.
- Precision measurement
- High input resistance broadband
- Medical imaging
- Oscilloscopes
- Integrator circuits
- pH (acidity)
- Instrumentation
- Navigation
- Displayers for aircraft and air transportation control systems
- Commercial audio systems
