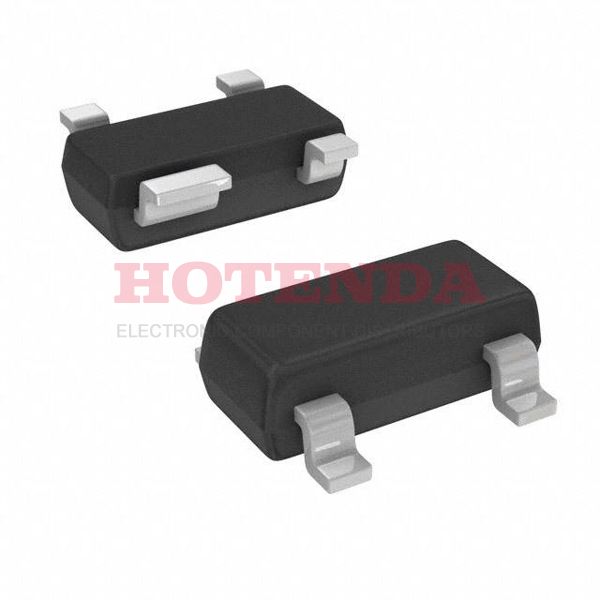

Name: MAX6423US27+T
Brand: Maxim Integrated
SKU: MAX6423US27+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Number of Pins	4
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	Matte Tin (Sn)
Subcategory	Power Management Circuits
Max Power Dissipation	320mW
Technology	BICMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	MAX6423
Output	Open Drain or Open Collector
Pin Count	4
Number of Channels	1
Max Supply Voltage	5.5V
Min Supply Voltage	1V
Operating Supply Current	2.5μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active Low
Voltage - Threshold	2.7V
Number of Voltages Monitored	1
Reset Timeout	Adjustable/Selectable
Min Reset Threshold Voltage	2.633V
Max Reset Threshold Voltage	2.768V
Threshold Voltage	+2.7V
Undervoltage Threshold	2.633V
Overvoltage Threshold	2.768V
Length	2.92mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX6423US27+T Product Details

MAX6423US27+T Overview

There are 4 mounting terminals on the voltage supervisor, each of which has a different function. Power management is packaged in a Tape & Reel (TR) way. Please find attached 1 functions for your reference in this IC power. This power managment ic consists of 1 channels, each of which can be used independently. In this IC management you will find TO-253-4, TO-253AA functions for you to refer to. With power management, you get a lot of benefits that you won't find in other Simple Reset/Power-On Reset products. IC management is specified that the package peak reflow temperature should be 260. In a 5V supply voltage, the power management conducts. When 1 is applied to the power ic, it conducts. Using Surface Mount, IC management is mounted. Power Management Circuits is a subcategory of this PMIC chip. A total of 4 pins are located on this power management. 4 pins are on the supervisor. Normally, the supply voltage (Vsup) for this PMIC should not be lower than 1V. There should be no more than 5.5V volts of supply voltage (Vsup) in this power management. Surface Mount mounting is recommended. This power management is the recommended temperature range for the supervisors: -40°C~125°C TA. There is an output voltage of Open Drain or Open Collector from this supervisor when it is operating. In order to maintain a stable supply current for the power management, 2.5μA is the recommended value. If you want to search for similar IC managements of this manufacturer, you can always refer to MAX6423, which is the base power ics number.
