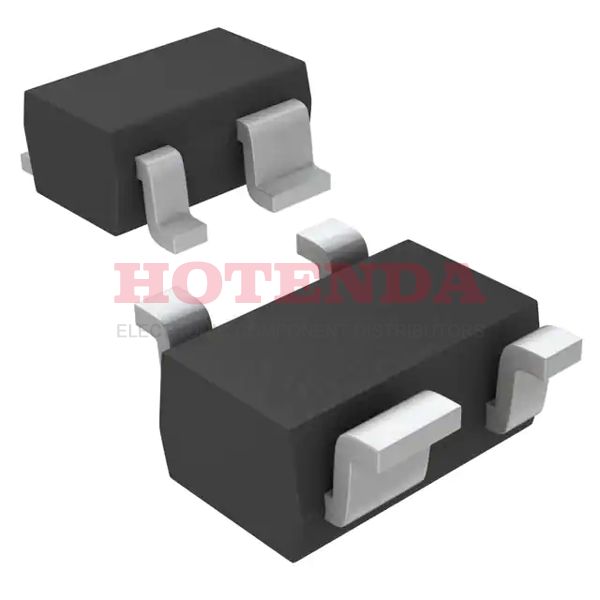

Name: MAX6423XS27+T
Brand: Maxim Integrated
SKU: MAX6423XS27+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-82A, SOT-343
Number of Pins	4
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	Matte Tin (Sn)
Subcategory	Power Management Circuits
Max Power Dissipation	245mW
Technology	BICMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	0.65mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	MAX6423
Output	Open Drain or Open Collector
Pin Count	4
Number of Channels	1
Max Supply Voltage	5.5V
Min Supply Voltage	1V
Operating Supply Current	2.5μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active Low
Voltage - Threshold	2.7V
Number of Voltages Monitored	1
Reset Timeout	Adjustable/Selectable
Min Reset Threshold Voltage	2.633V
Max Reset Threshold Voltage	2.768V
Threshold Voltage	+2.7V
Undervoltage Threshold	2.633V
Overvoltage Threshold	2.768V
Length	2.025mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
