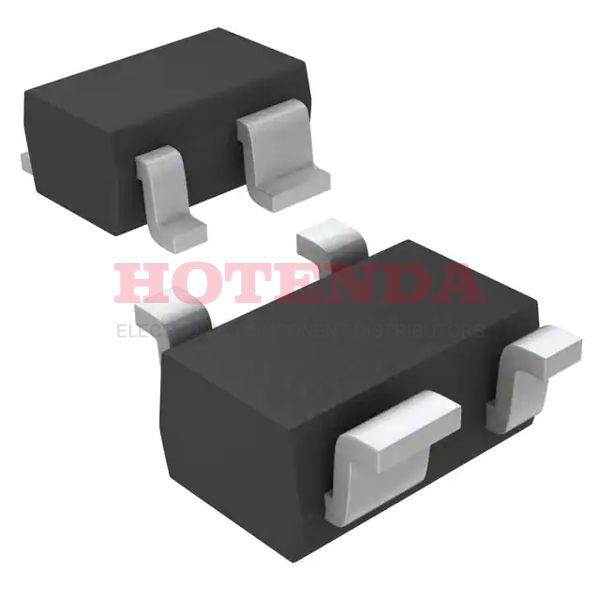

MAX6840XSD2+T Overview
There are 4 terminals on this power management that allow it to be mounted. In terms of packaging, power management follows the Tape & Reel (TR) model. Please find attached 1 functions for your reference in this IC power. Power management consists of 1 channels, each of which can be used independently. As a reference, this IC power includes SC-82A, SOT-343 functions for your convenience. There are many benefits that this IC power shares with other Simple Reset/Power-On Reset products as well. During the reflow process, a peak temperature of 260 is specified for the package. During operation, the power ic is supplied with a voltage of 1.2V. IC management conducts in a 1-voltage supply. The power management is mounted by Surface Mount. This power ic can be sub-categorized as Power Management Circuits. A total of 4 pins are located on this power management. Power managment ic pin count is 4. A voltage (Vsup) that doesn't fall below 550mV as the minimum supply voltage (Vsup) should be applied to this IC power in order to ensure its proper operation. There should be no more than 3.6V volts of supply voltage (Vsup) in this power management. A Surface Mount mounting type is recommended. This power management is the recommended temperature range for the supervisors: -40°C~85°C. While this power management is operating, it will output Open Drain or Open Collector as the output voltage. It is estimated that the voltage supervisor's supply current is 16μA. A similar IC managements number of the manufacturer can always be found by using MAX6840, the base power ics number.
MAX6840XSD2+T Features
Simple Reset/Power-On Reset type
Minimum supply voltage of 550mV
16μA operating supply current
MAX6840XSD2+T Applications
There are a lot of Maxim Integrated MAX6840XSD2+T Voltage Supervisors applications.
- Kitchen appliances
- Cloud computing
- Multi-voltage system
- Data storage applications
- Insulation fault location system
- Stable power system
- Telecommunications equipment
- Power distribution systems of operating room
- External alarm
- DC stabilized power supply module
