Name: DL5229B-TP
Brand: Micro Commercial Co
SKU: DL5229B-TP
Availability: InStock

new-10%

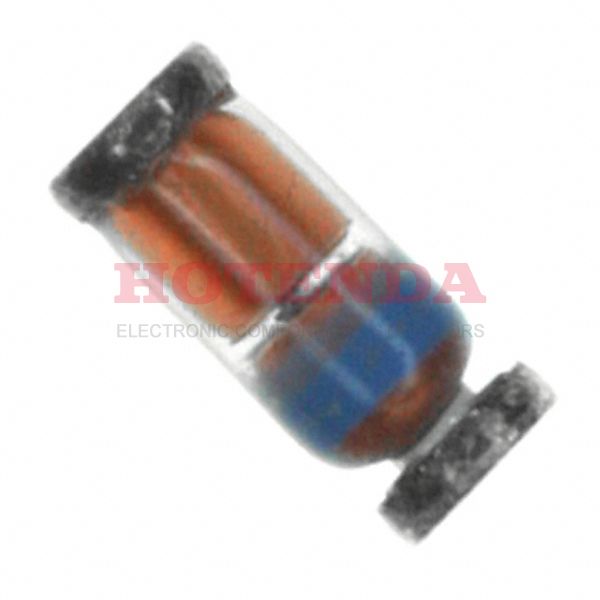

DL5229B-TP

Manufacturer part number:DL5229B-TP

Manufacturer:Micro Commercial Co

Description:ZENER DIODE 22Ohm ±5% 5μA @ 1V -65°C~175°C 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:DL5229B-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Surface Mount	YES
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Tape & Reel (TR)
Published	2009
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8541.10.00.50
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	10
Base Part Number	DL5229
Pin Count	2
JESD-30 Code	O-LELF-R2
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	0.5W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	5μA @ 1V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 200mA
Case Connection	ISOLATED
Power - Max	500mW
Impedance-Max	22Ohm
Reference Voltage	4.3V
Voltage - Zener (Nom) (Vz)	4.3V
Voltage Tol-Max	5%
Working Test Current	20mA
Dynamic Impedance-Max	22Ohm
RoHS Status	RoHS Compliant

DL5229B-TP Product Details

DL5229B-TP Overview
