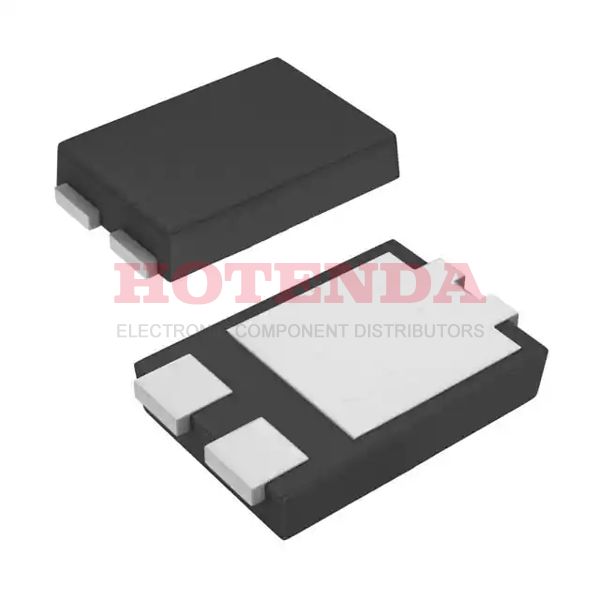

MBR10100ULPS-TP

Name: MBR10100ULPS-TP
Brand: Micro Commercial Co
SKU: MBR10100ULPS-TP
Availability: InStock

new-10%

Manufacturer part number:MBR10100ULPS-TP

Manufacturer:Micro Commercial Co

Description:MBR10100ULPS-TP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website

Case Package:SOT-23

Datasheet:MBR10100ULPS-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2013
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
HTS Code	8541.10.00.80
Terminal Position	DUAL
Terminal Form	FLAT
JESD-30 Code	R-PDSO-F3
Operating Temperature (Max)	175°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	500μA @ 100V
Voltage - Forward (Vf) (Max) @ If	700mV @ 10A
Case Connection	CATHODE
Operating Temperature - Junction	-55°C~175°C
Output Current-Max	10A
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	10A
Number of Phases	1
Rep Pk Reverse Voltage-Max	100V
JEDEC-95 Code	TO-277B
Non-rep Pk Forward Current-Max	200A
Reverse Current-Max	500μA
RoHS Status	ROHS3 Compliant
