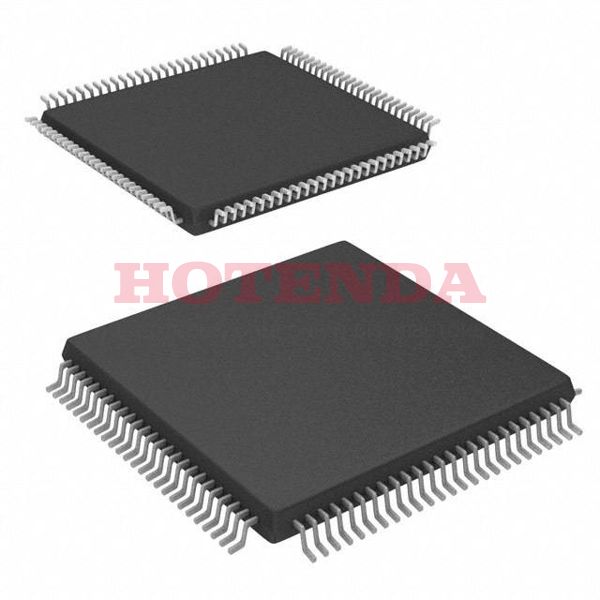

Name: AT32UC3C1256C-AZR
Brand: Microchip Technology
SKU: AT32UC3C1256C-AZR
Availability: InStock

new-10%

AT32UC3C1256C-AZR

Manufacturer part number:AT32UC3C1256C-AZR

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH AVR 32-Bit Microcontroller Automotive, AEC-Q100, AVR®32 UC3 C Series AT32UC3C1256C 100 Pin 66MHz 5V 100-TQFP

Case Package:SOT-23

Datasheet:AT32UC3C1256C-AZR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-TQFP (14x14)
Number of Terminals	100
Interfaces	CAN/Ethernet/I2S/LIN
Data Converters	A/D 16x12b, D/A 4x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	AT32UC3
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	81
Operating Temperature	-40°C~125°C TA
Packaging	Cut Tape (CT)
Series	Automotive, AEC-Q100, AVR®32 UC3 C
Published	2012
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	66MHz
Base Part Number	AT32UC3C1256C
JESD-30 Code	S-PQFP-G100
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3.3/5V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	4.5V
Interface	CAN, Ethernet, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	81
Speed	50 MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 16x12b; D/A 4x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
Number of Timers/Counters	6
Address Bus Width	24
ROM (words)	262144
EEPROM Size	--
CPU Family	AVR RISC
Screening Level	AEC-Q100
External Data Bus Width	16
RAM (bytes)	65536
ROM Programmability	FLASH
Length	14mm
Height Seated (Max)	1.2mm
Width	14 mm
RoHS Status	ROHS3 Compliant

AT32UC3C1256C-AZR Product Details

AT32UC3C1256C-AZR Overview

This Microcontroller comes in a 100-TQFP package. This Microcontroller has 81 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, AVR®32 UC3 C Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by AVR Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 100 terminals. Microcontroller comes with 32 bit size. The component always operates in 5V supply voltage. MCU chip has YES DMA channels. The part owns 256kB memory size. You can find alternatives through the base part number AT32UC3C1256C. MCU's frequency is 66MHz. The device works in YES PWM channels. The pin number of the component remains 100. It has 6 timers/counters. The device is embedded with AVR RISC CPU family.
