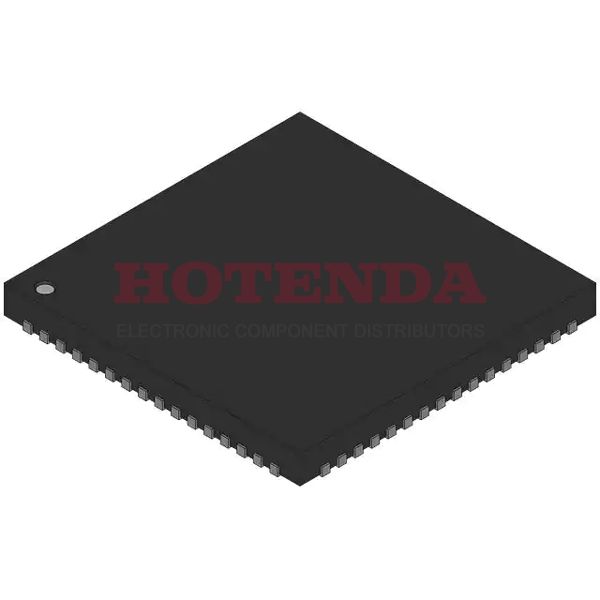

Name: AT32UC3C2512C-Z2ZT
Brand: Microchip Technology
SKU: AT32UC3C2512C-Z2ZT
Availability: InStock

new-10%

AT32UC3C2512C-Z2ZT

Manufacturer part number:AT32UC3C2512C-Z2ZT

Manufacturer:Microchip Technology

Description:512KB 512K x 8 FLASH AVR 32-Bit Microcontroller Automotive, AEC-Q100, AVR®32 UC3 C Series AT32UC3C2512C 64 Pin 50MHz 5V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:AT32UC3C2512C-Z2ZT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Interfaces	CAN/Ethernet/I2S/SPI
Data Converters	A/D 11x12b, D/A 2x12b
Package	Tray
Base Product Number	AT32UC3
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	64
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	Automotive, AEC-Q100, AVR®32 UC3 C
Published	2010
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	50MHz
Base Part Number	AT32UC3C2512C
JESD-30 Code	S-XQCC-N64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3.3/5V
Temperature Grade	AUTOMOTIVE
Interface	CAN, Ethernet, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	45
Speed	50MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	CANbus, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 11x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1 mm
Number of Timers/Counters	4
Address Bus Width	24
ROM (words)	524288
EEPROM Size	--
CPU Family	AVR RISC
Screening Level	AEC-Q100
External Data Bus Width	16
RAM (bytes)	65536
ROM Programmability	FLASH
Length	9mm
Height Seated (Max)	1mm
Width	9 mm
RoHS Status	ROHS3 Compliant

AT32UC3C2512C-Z2ZT Product Details

AT32UC3C2512C-Z2ZT Overview

In a 64-VFQFN Exposed Pad package, the MCU is available. 45 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, AVR®32 UC3 C series components make up this electrical component. 512KB 512K x 8 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 64 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 5V volt supply output on the chip. DMA channels number YES. 512kB is the memory size of the part. The base part number AT32UC3C2512C can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 50MHz. The device works in YES PWM channels. Located on the chip are 64 pins. The clock has 4 timers or counters on it. In this device, there is a AVR RISC CPU embedded within it.
