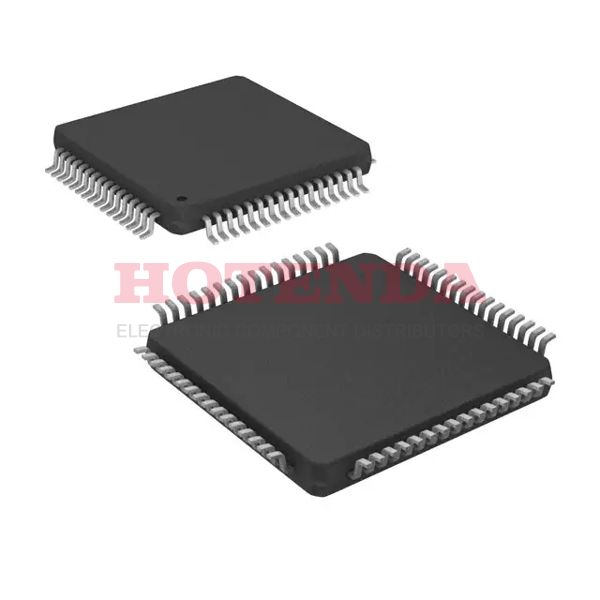

32KB 32K x 8 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® 90CAN Series AT90CAN32 64 Pin 16MHz 5V 64-TQFP
SOT-23
AT90CAN32-15AZ Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Contact Plating
Tin
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
64-TQFP
Surface Mount
YES
Number of Pins
64
Supplier Device Package
64-TQFP (14x14)
Number of Terminals
64
Interfaces
JTAG/SPI/TWI/USART
Data Converters
A/D 8x10b
Package
Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number
AT90CAN32
Mfr
Microchip Technology
Product Status
Active
Package Shape
SQUARE
Manufacturer
Microchip Technology Inc
Number of I/O Lines
53
Operating Temperature
-40°C~125°C TA
Packaging
Tape & Reel (TR)
Series
Automotive, AEC-Q100, AVR® 90CAN
Published
2008
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
64
Additional Feature
ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8MHZ
Terminal Position
QUAD
Terminal Form
GULL WING
Supply Voltage
5V
Terminal Pitch
0.8mm
Reach Compliance Code
compliant
Frequency
16MHz
Base Part Number
AT90CAN32
JESD-30 Code
S-PQFP-G64
Qualification Status
Not Qualified
Supply Voltage-Max (Vsup)
5.5V
Power Supplies
3/5V
Temperature Grade
AUTOMOTIVE
Interface
CAN, I2C, SPI, UART, USART
Memory Size
32kB
Oscillator Type
Internal
Number of I/O
53
Speed
16MHz
RAM Size
2K x 8
Voltage - Supply (Vcc/Vdd)
2.7V~5.5V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Core Processor
AVR
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type
FLASH
Core Size
8-Bit
Program Memory Size
32KB 32K x 8
Connectivity
CANbus, I2C, SPI, UART/USART
Supply Current-Max
30 mA
Bit Size
8
Data Converter
A/D 8x10b
Has ADC
YES
DMA Channels
NO
Data Bus Width
8b
PWM Channels
YES
DAC Channels
NO
Seated Height-Max
1.2 mm
Number of Timers/Counters
4
Address Bus Width
16
ROM (words)
32768
EEPROM Size
1K x 8
CPU Family
AVR RISC
External Data Bus Width
8
RAM (bytes)
1024
ROM Programmability
FLASH
Device Core
AVR
Height Seated (Max)
1.2mm
Width
14 mm
Length
14 mm
RoHS Status
ROHS3 Compliant
In-Stock:4736 items
AT90CAN32-15AZ Product Details
AT90CAN32-15AZ Description
The AT90CAN32-15AZ is a high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 128KB ISP flash memory with read-while-write capabilities.
