ATA6870N-PLPW Overview
A 48-VFQFN Exposed Pad package would be appropriate for this. IC POWER SUPPLY SUPPORT CIRCUIT is the system battery's analog IC. The available channels are 6. Tape & Reel (TR) cases are used for packaging. Surface Mount is the mount number for this electronic part. Surface Mount is positioned in the way of this electronic part. It can provide functions of type Battery Monitor. For the electronic part to perform properly, it should be operated at temperature -40°C~85°C TA. A battery chemistry of Multi-Chemistry is used in this electronic part. There is a 6.9/30V volt power source. The model is based on the ATA6870 family. A voltage of 30V is reached when the maximum supply voltage (Vsup) is reached. A voltage greater than 6.9V (Vsup) must be required for a power supply. Unless specified otherwise, Isup (the maximum supply current) must not exceed 15mA. It is specified that the operating supply voltage for this battery instrument is 33.3V. The power IC's series corresponds to --. 20mA is the maximum current the power ICs can accept. 1μA volts of supply current power it.
ATA6870N-PLPW Features

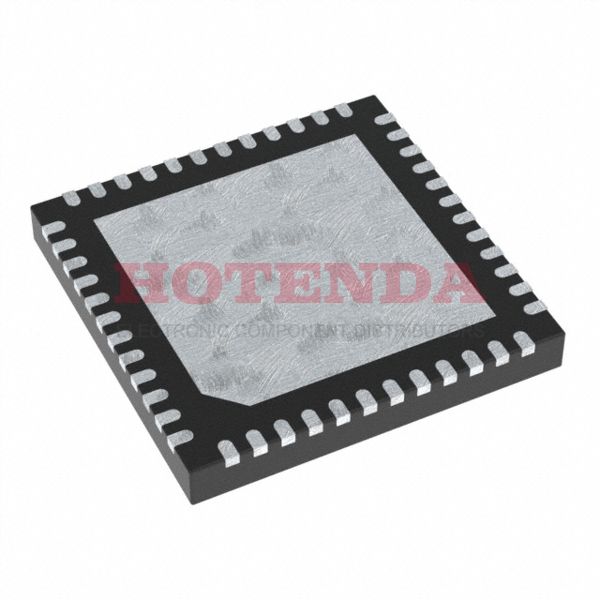

Available in 48-VFQFN Exposed Pad Package
Mounting Type: Surface Mount
Battery Chemistry : Multi-Chemistry
Supply Voltage-Max (Vsup) : 30V
Output Voltage at the range of 3.3V
ATA6870N-PLPW Applications
There are a lot of Microchip Technology
ATA6870N-PLPW Battery Management ICs applications.
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
