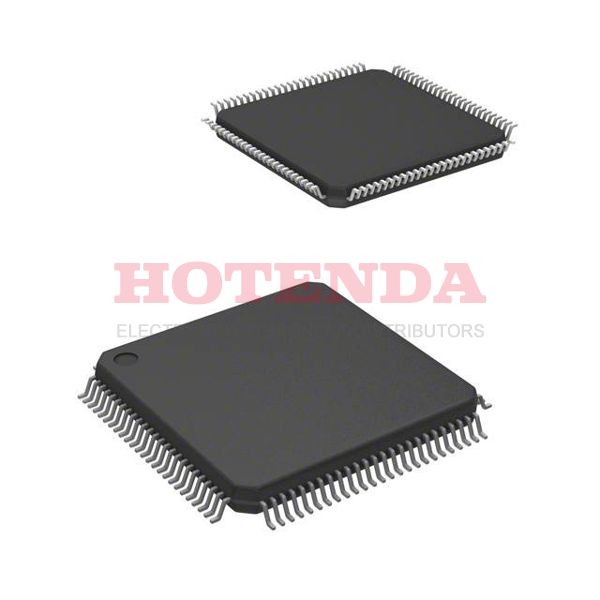

ATSAM4S4CA-AN

Manufacturer part number:ATSAM4S4CA-AN

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4S Series ATSAM4S4 100 Pin 120MHz 1.2V 100-LQFP

Case Package:SOT-23

Datasheet:ATSAM4S4CA-AN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-LQFP
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-LQFP (14x14)
Weight	1.319103g
Number of Terminals	100
Data Converters	A/D 16x12b, D/A 2x12b
Package	Tray
Base Product Number	ATSAM4S
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	79
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	SAM4S
Published	2015
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	120MHz
Base Part Number	ATSAM4S4
JESD-30 Code	S-PQFP-G100
Operating Supply Voltage	1.2V
Temperature Grade	INDUSTRIAL
Interface	EBI/EMI, I2C, I2S, IrDA, SPI, UART, USART, USB
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	79
Speed	120MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 16x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.6 mm
Number of Timers/Counters	2
Address Bus Width	24
Core Architecture	ARM
EEPROM Size	--
External Data Bus Width	8
Number of ADC Channels	16
ROM Programmability	FLASH
Length	14mm
Height Seated (Max)	1.6mm
Width	14 mm
RoHS Status	ROHS3 Compliant

ATSAM4S4CA-AN Product Details

ATSAM4S4CA-AN Overview

There is a 100-LQFP package available. The board has 79 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~105°C TA is the temperature range at which this Microcontroller operates. SAM4S-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 256KB 256K x 8. Powered by a ARM® Cortex®-M4 Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 100. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 1.2V volts. A total of YES DMA channels are available. This IC part has a memory size of 256kB. There are a number of alternatives to the base part number ATSAM4S4 that you can find. Performing well when operated at frequency 120MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 100 pins that can be accessed. It comes with 2 timers/counters that can be set up. The CPU is based on ARM cores. The device has a total of 16 ADC channels in total.
