Name: ATSAMD51J20A-UNT
Brand: Microchip Technology
SKU: ATSAMD51J20A-UNT
Availability: InStock

new-10%

ATSAMD51J20A-UNT

Manufacturer part number:ATSAMD51J20A-UNT

Manufacturer:Microchip Technology

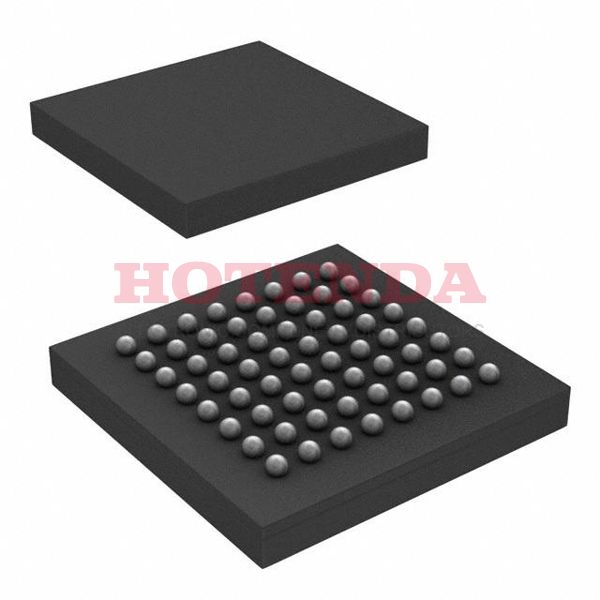

Description:1MB 1M x 8 FLASH ARM® Cortex®-M4F 32-Bit Microcontroller SAM D51 Series 3.3V 64-UFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAMD51J20A-UNT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	25 Weeks
Mounting Type	Surface Mount
Package / Case	64-UFBGA, WLCSP
Surface Mount	YES
Supplier Device Package	64-WLCSP (3.6x3.5)
Number of Terminals	64
Package	Tape & Reel (TR)
Base Product Number	ATSAMD51
Mfr	Microchip Technology
Data Converters	A/D 24x12b; D/A 2x12b
Product Status	Active
Package Shape	RECTANGULAR
Number of I/O Lines	51
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	SAM D51
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	64
Terminal Finish	Matte Tin (Sn)
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3.3V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PBGA-B64
Supply Voltage-Max (Vsup)	3.63V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.71V
Oscillator Type	Internal
Number of I/O	51
Speed	120MHz
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	1.71V~3.63V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4F
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM
Clock Frequency	48MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	1MB 1M x 8
Connectivity	EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 24x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.533 mm
EEPROM Size	-
On Chip Program ROM Width	8
Screening Level	ISO/TS-16949
ROM Programmability	FLASH
Length	3.593mm
Height Seated (Max)	0.533mm
Width	3.513 mm
RoHS Status	RoHS Compliant

ATSAMD51J20A-UNT Product Details

ATSAMD51J20A-UNT Overview

In a 64-UFBGA, WLCSP package, the MCU is available. 51 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~105°C TA that is operated by this Microcontroller. SAM D51 series components make up this electrical component. 1MB 1M x 8 is the size of its program memory. A ARM® Cortex®-M4F Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 64 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. The device works in YES PWM channels. A 48MHz-clock frequency is used to operate it.
