Name: ATTINY45-20SU
Brand: Microchip Technology
SKU: ATTINY45-20SU
Price: 1.47000 USD
Availability: InStock

new-10%

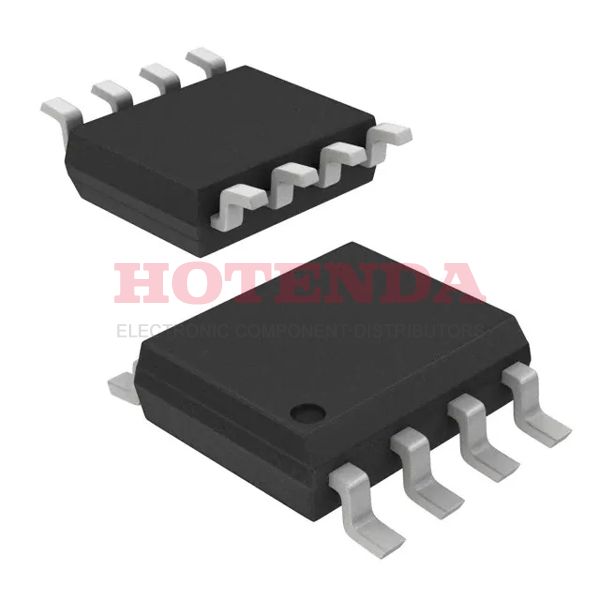

ATTINY45-20SU

Manufacturer part number:ATTINY45-20SU

Manufacturer:Microchip Technology

Description:4KB 2K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATtiny Series ATTINY45 8 Pin 20MHz 5V 8-SOIC (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:ATTINY45-20SU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-SOIC
Number of Terminals	8
Mounting Style	SMD/SMT
Interfaces	SPI/USI
Enclosure	SOIC 8
Manuf. code	MCP
Max. operating temperature	+85°C
Manufacturer	Microchip Technology
Data Converters	A/D 4x10b
Family Name	ATtiny45
Instruction Set Architecture	RISC
Dimensions	5.35 x 5.4 x 1.91mm
Typical Operating Supply Voltage	2.7 → 5.5 V
Package Type	EIAJ SOIC
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
MSL	MSL 2 - 1 year
Qualification	-
Number of I/Os	6 I/O
Interface Type	USI
Brand	Microchip Technology / Atmel
Tradename	AVR
RoHS	Details
Package	Tube
Base Product Number	ATTINY45
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Number of I/O Lines	6
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	AVR® ATtiny
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	8
Termination	SMD/SMT
Type	ATTINY45-20SU
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	1.27 mm
Reach Compliance Code	compliant
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATTINY45
Pin Count	8
JESD-30 Code	R-PDSO-G8
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Temperature Grade	INDUSTRIAL
Interface	SPI
Memory Size	4kB
Oscillator Type	Internal
Number of I/O	6
Speed	20MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	4KB 2K x 16
Connectivity	USI
Supply Current-Max	8 mA
Bit Size	8
Data Converter	A/D 4x10b
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	2.16 mm
Number of Timers/Counters	2
Address Bus Width	8b
Product Type	8-bit Microcontrollers - MCU
ROM (words)	4096
EEPROM Size	256 x 8
CPU Family	AVR RISC
Number of Programmable I/O	6
RAM (bytes)	256
Number of ADC Channels	4
ROM Programmability	FLASH
Number of I2C Channels	1
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Height	1.91mm
Length	5.35mm
Width	5.4mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ATTINY45-20SU Product Details

ATTINY45-20SU Overview

In a 8-SOIC (0.209, 5.30mm Width) package, the MCU is available. 6 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. AVR® ATtiny series components make up this electrical component. 4KB 2K x 16 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 8 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 4kB is the memory size of the part. The base part number ATTINY45 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 20MHz. The device works in YES PWM channels. Located on the chip are 8 pins. The clock has 2 timers or counters on it. There are 8 pins on it. In this device, there is a AVR RISC CPU embedded within it. It programs in 6 Programmable I/O. I would like to mention a few additional features such as ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ in order to name a few. A total of 4 channels of ADC are available on this device. There are 1 I2C channels included in the part, which has been designed for the purpose.
