Name: MCP1710T-15I/LZ
Brand: Microchip Technology
SKU: MCP1710T-15I/LZ
Availability: InStock

new-10%

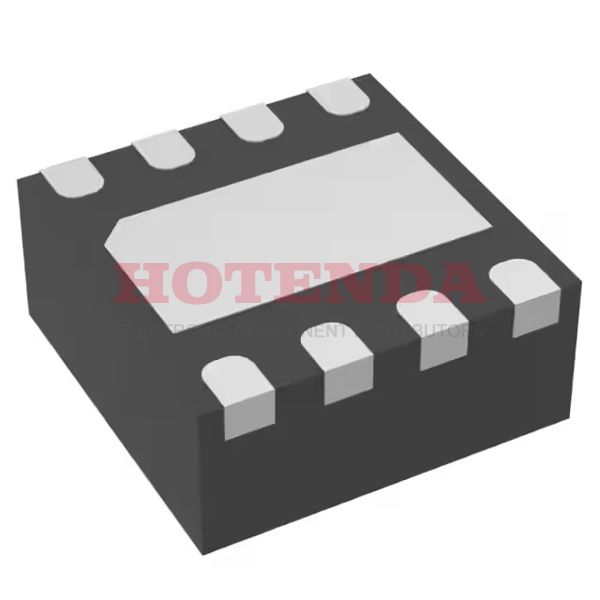

MCP1710T-15I/LZ

Manufacturer part number:MCP1710T-15I/LZ

Manufacturer:Microchip Technology

Description:Enable Fixed 0.5mm MCP1710 PMIC -- Series 8-VFDFN Exposed Pad

Case Package:SOT-23

Datasheet:MCP1710T-15I/LZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Package / Case	8-VFDFN Exposed Pad
Mounting Type	Surface Mount
Supplier Device Package	8-VDFN (2x2)
Weight	37.393021mg
Number of Terminals	8
Package	Tape & Reel (TR)
Base Product Number	MCP1710
Mfr	Microchip Technology
Product Status	Obsolete
RoHS	Compliant
Manufacturer	Microchip Technology Inc
Package Shape	SQUARE
Series	--
Published	2012
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~85°C
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
Packing Method	TAPE AND REEL
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Base Part Number	MCP1710
JESD-30 Code	S-PDSO-N8
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	1.5V
Output Type	Fixed
Output Configuration	Positive
Output Current	150 mA
Current - Output	200mA
Quiescent Current	20nA
Control Features	Enable
Output Voltage 1	1.5V
Input Voltage (Min)	2.5V
Voltage - Output (Min/Fixed)	1.5V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	20nA
Voltage Dropout (Max)	0.45V @ 200mA
PSRR	22dB (100Hz)
Seated Height-Max	1 mm
Dropout Voltage1-Nom	0.3V
Output Voltage1-Max	1.56 V
Output Voltage1-Min	1.44 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.2 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.45 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.5 V
Width	2mm
Length	2mm
RoHS Status	ROHS3 Compliant

MCP1710T-15I/LZ Product Details

MCP1710T-15I/LZ Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 8-VFDFN Exposed Pad package. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 200mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is MCP1710. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TAPE AND REEL. It operates in the 20nA Quiescent Current state. It is part of the -- Series.
