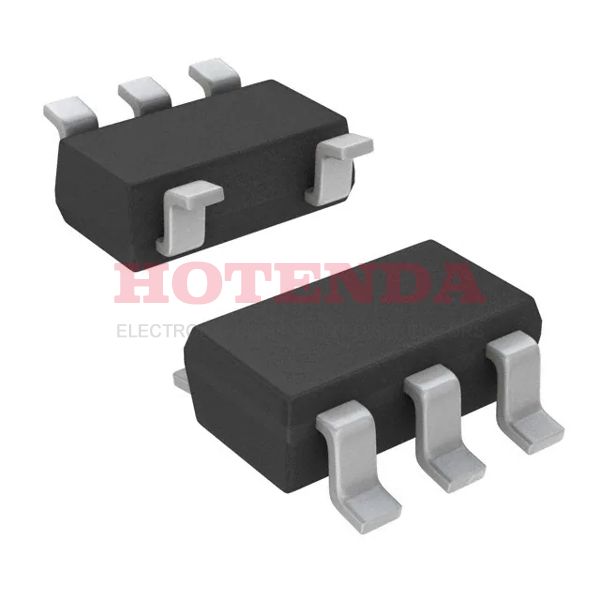

Name: MCP1824T-1802E/OT
Brand: Microchip Technology
SKU: MCP1824T-1802E/OT
Price: 0.56000 USD
Availability: InStock

new-10%

MCP1824T-1802E/OT

Manufacturer part number:MCP1824T-1802E/OT

Manufacturer:Microchip Technology

Description:Enable, Power Good Fixed 0.95 mm MCP1824 PMIC MCP1824 Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MCP1824T-1802E/OT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Number of Pins	5
Supplier Device Package	SOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	SOT-23
Junction to Case	81 °C/W
Input Voltage Range	6 to 2.1 V
Maximum Input Voltage	6 V
Junction to Ambient	256 °C/W
Mounting	Surface Mount
Polarity Type	Positive
Regulator Output Type	Fixed
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.32@300mA
Operating Temperature Classification	Automotive
Package Type	SOT-23
Dropout Voltage@Current (Typ)	0.2@300mA
Operating Temp Range	-40C to 125C
Rad Hardened	No
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1824
Mfr	Microchip Technology
Product Status	Active
Schedule B	8542390000, 8542390000/8542390000, 8542390000/8542390000/8542390000, 8542390000/8542390000/8542390000/8542390000
RoHS	Compliant
Dimensions	3.1 x 1.8 x 1.3mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
MSL	MSL 1 - Unlimited
Qualification	AEC-Q100
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	MCP1824
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1824
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Current - Supply (Max)	--
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	300mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.3 A
Current - Output	300mA
Quiescent Current	220μA
Control Features	Enable, Power Good
Accuracy	2.5 %
Output Voltage 1	1.8V
Input Voltage (Min)	2.1(V)
Voltage - Output (Min/Fixed)	1.8V
Topology	LDO
Number of Regulators	1
Min Input Voltage	2.1V
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	220µA
Voltage Dropout (Max)	0.32V @ 300mA
Max Input Voltage	6 V
PSRR	55dB (100Hz)
Seated Height-Max	1.45 mm
Dropout Voltage	200mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.2V
Output Voltage1-Max	1.845 V
Output Voltage1-Min	1.755 V
Regulator Type	Low Dropout Voltage
Voltage Tolerance-Max	2.5%
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.32 V
Screening Level	Extended
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Nominal Output Voltage	1.8V
Input Bias Current	120μA
Output Voltage Accuracy	2.5 %
Adjustability	FIXED
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	0.5 %
Product	LDO Voltage Regulators
Input Voltage	6(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	0.22 mA
Height	1.2954mm
Length	3.0988mm
Width	1.8034mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1824T-1802E/OT Product Details

MCP1824T-1802E/OT Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in SC-74A, SOT-753 case. On the Linear IC itself, there are 5 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 300mA from this regulator IC. There are a total of 5 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 5 pins. For your information, the basic part number for this regulator IC is MCP1824. There is one type of regulator for this device, which is Low Dropout Voltage. TAPE AND REEL is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 300mA. It operates in the 220μA Quiescent Current state. This IC regulator is a part of the MCP1824 Series of devices. You should use the regulator IC when the temperature is below 125 °C. It is not possible to operate the chip below -40 °C operating temperature.
