Name: MIC2215-MMGYML-TR
Brand: Microchip Technology
SKU: MIC2215-MMGYML-TR
Price: 2.28000 USD
Availability: InStock

new-10%

MIC2215-MMGYML-TR

Manufacturer part number:MIC2215-MMGYML-TR

Manufacturer:Microchip Technology

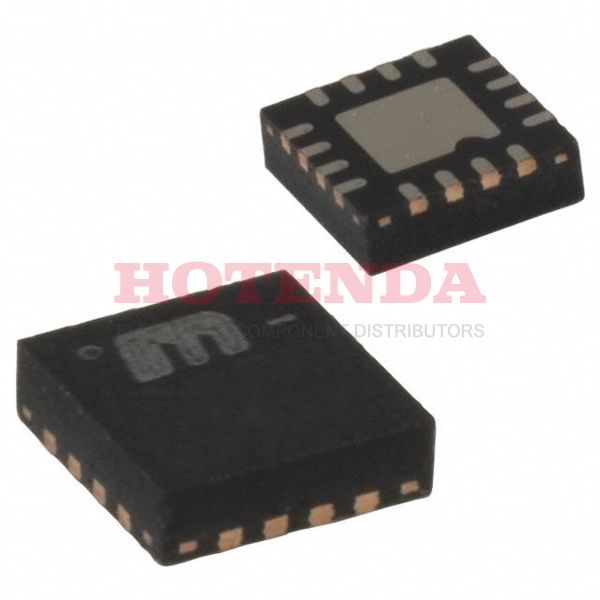

Description:Enable Fixed 0.65mm MIC2215 PMIC -- Series 16 16-VQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC2215-MMGYML-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, 16-MLF®
Surface Mount	YES
Supplier Device Package	16-MLF® (4x4)
Number of Terminals	16
Supplier Package	VQFN
Input Voltage Range	2.25, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	45 °C/W
Mounting	Surface Mount
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR)
Base Product Number	MIC2215
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	16
Subcategory	PMIC - Power Management ICs
Terminal Position	QUAD
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Base Part Number	MIC2215
Pin Count	16
JESD-30 Code	S-XQCC-N16
Function	LDO
Current - Supply (Max)	550μA
Number of Outputs	3
Voltage - Input (Max)	5.5V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	250mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.25 A
Current - Output	250mA, 250mA, 250mA
Control Features	Enable
Output Voltage 1	2.8V
Voltage - Output (Min/Fixed)	2.8V 2.8V 1.8V
Number of Regulators	3
Min Input Voltage	2.25V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.275V @ 250mA 0.275V @ 250mA 0.275V @ 250mA
PSRR	70dB ~ 45dB (100Hz ~ 1kHz)
Seated Height-Max	0.9 mm
Dropout Voltage	170mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	2.856 V
Output Voltage1-Min	2.744 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.275 V
Min Current Limit	350mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Output Voltage 2	2.8V
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Load Regulation	0.5 %
Output Voltage2-Max	2.856 V
Output Voltage2-Min	2.744 V
Dropout Voltage2-Max	0.275 V
Product Category	LDO Voltage Regulators
Length	4mm
Height Seated (Max)	0.9mm
Width	4mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC2215-MMGYML-TR Product Details

MIC2215-MMGYML-TR Overview

The package contains a Tape & Reel (TR) case. In 16-VQFN Exposed Pad, 16-MLF® cases, it is packaged. This gadget has 16 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 3 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 250mA, 250mA, 250mA at the moment. 16 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 3 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. I just wanted to let you know that this IC voltage regulator has the part number MIC2215 as its basic part number. In terms of components, this is an example of a PMIC - Power Management ICs component. This device is controlled by a FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR type regulator. When operating at maximum output current, the regulator IC reaches 250mA. It belongs to the -- Series of regulators.
