Name: MIC39151-2.5WU-TR
Brand: Microchip Technology
SKU: MIC39151-2.5WU-TR
Price: 3.83000 USD
Availability: InStock

new-10%

MIC39151-2.5WU-TR

Manufacturer part number:MIC39151-2.5WU-TR

Manufacturer:Microchip Technology

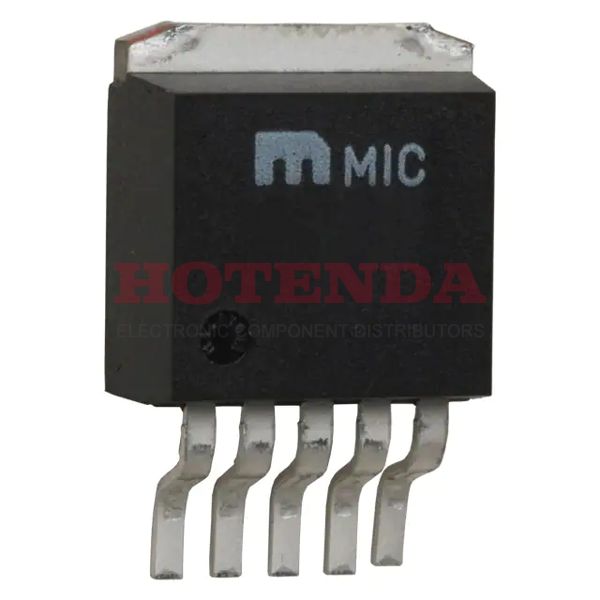

Description:Enable Fixed 1.7 mm MIC39151-2.5 PMIC -- Series TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC39151-2.5WU-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Mounting Style	SMD/SMT
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC39151
Mfr	Microchip Technology
Product Status	Active
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	compliant
Base Part Number	MIC39151-2.5
JESD-30 Code	R-PSSO-G5
Number of Outputs	1 Output
Voltage - Input (Max)	16V
Output Voltage	2.5V
Output Type	Fixed
Max Output Current	1.5A
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	20mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Min Input Voltage	2.25V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.5V @ 1.5A
Max Input Voltage	16V
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage	375mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.375 V
Min Output Voltage	2.5V
Output Voltage1-Max	2.55 V
Output Voltage1-Min	2.45 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	20 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.5 V
Product Category	LDO Voltage Regulators
Width	8.7755 mm
Length	10.363 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC39151-2.5WU-TR Product Details

MIC39151-2.5WU-TR Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 1.5A. The regulator has a total of 1 Output outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. For your information, part number MIC39151-2.5 is the basic part number for this voltage regulator IC. As you can see, this regulator IC represents a typical PMIC - Power Management ICs component. As far as the regulator type, it is a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type. There is a TR way of packing the IC voltage regulators in the box. There is a maximum output current of 1.5A for this regulator to meet the operational requirements. It operates in the 20mA Quiescent Current state. The -- Series is a series of products made by D-Link. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 125°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -40°C.
