Name: MIC49200-1.0WR
Brand: Microchip Technology
SKU: MIC49200-1.0WR
Price: 3.94000 USD
Availability: InStock

new-10%

MIC49200-1.0WR

Manufacturer part number:MIC49200-1.0WR

Manufacturer:Microchip Technology

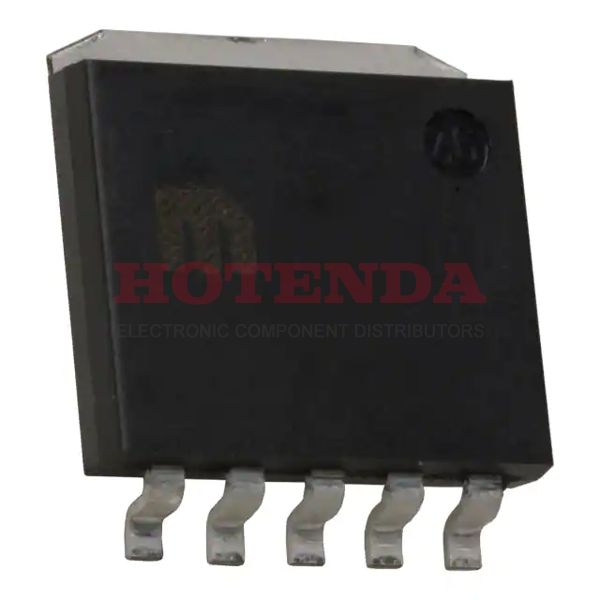

Description:Enable Fixed 1.7 mm MIC49200 PMIC -- Series 5 SPak-5 (5 leads + Tab)

Case Package:SOT-23

Datasheet:MIC49200-1.0WR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SPak-5 (5 leads + Tab)
Surface Mount	YES
Number of Pins	5
Supplier Device Package	S-PAK-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	S-PAK
Input Voltage Range	1.4, 6.5 V
Maximum Input Voltage	6.5 V
Junction to Ambient	2 °C/W
Mounting	Surface Mount
Polarity Type	Positive
Regulator Output Type	Fixed
Voltage Regulator Type	Linear
Operating Temperature Classification	Automotive
Package Type	SPAK
Dropout Voltage@Current (Typ)	0.13@750mA/[email protected]
Operating Temp Range	-40C to 125C
Rad Hardened	No
Package	Tube
Base Product Number	MIC49200
Mfr	Microchip Technology
Product Status	Active
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
Tolerance	1 %
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	5
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MIC49200
Pin Count	5
JESD-30 Code	R-PSSO-G5
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6.5V
Output Voltage	1V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	2 A
Current - Output	2A
Control Features	Enable
Output Voltage 1	1V
Input Voltage (Min)	1.4(V)
Voltage - Output (Min/Fixed)	1V
Topology	LDO
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	0.625V @ 2A
Input Voltage (Max)	6.5 V
PSRR	--
Reference Voltage	0.909 V
Seated Height-Max	2.03 mm
Dropout Voltage	400mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	1.02 V
Output Voltage1-Min	0.98 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	2 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.625 V
Min Current Limit	2.5A
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	�1 %
Line Regulation	0.1 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1 V
Load Regulation	1 %
Product	LDO Voltage Regulators
Input Voltage	6.5(V)
Product Category	LDO Voltage Regulators
Height Seated (Max)	2.03mm
Width	8mm
Length	9.395 mm
RoHS Status	ROHS3 Compliant

MIC49200-1.0WR Product Details

MIC49200-1.0WR Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a SPak-5 (5 leads + Tab) package. There are 5 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 2A. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 5. FYI, the basic part number for this IC regulator is MIC49200. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the -- Series. Speaking of tolerance, this voltage regulator IC is characterized to have 1 % tolerance, which is quite low.
