Name: MIC5308YD6-TR
Brand: Microchip Technology
SKU: MIC5308YD6-TR
Price: 0.86000 USD
Availability: InStock

new-10%

MIC5308YD6-TR

Manufacturer part number:MIC5308YD6-TR

Manufacturer:Microchip Technology

Description:Enable Adjustable 0.95 mm MIC5308 PMIC -- Series 6 SOT-23-6 Thin, TSOT-23-6

Case Package:SOT-23

Datasheet:MIC5308YD6-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	22 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Surface Mount	YES
Package / Case	SOT-23-6 Thin, TSOT-23-6
Mounting Type	Surface Mount
Mount	Surface Mount
Number of Pins	6
Supplier Device Package	TSOT-23-6
Number of Terminals	6
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Product Status	Active
Mfr	Microchip Technology
Base Product Number	MIC5308
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Mounting	Surface Mount
Junction to Ambient	235 °C/W
Maximum Input Voltage	5.5 V
Input Voltage Range	1.6, 5.5 V
Supplier Package	TSOT-23
Series	--
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~125°C
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	uCap LDO Regulator
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5308
Pin Count	6
JESD-30 Code	R-PDSO-G6
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	2V
Output Type	Adjustable
Max Output Current	150mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.15 A
Current - Output	150mA
Quiescent Current	23 uA
Control Features	Enable
Voltage - Output (Min/Fixed)	0.8V
Number of Regulators	1
Min Input Voltage	1.6V
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	0.15V @ 150mA
Max Input Voltage	5.5V
PSRR	90dB ~ 70dB (1kHz)
Reference Voltage	0.7905 V
Seated Height-Max	1 mm
Dropout Voltage	45mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.045 V
Output Voltage1-Max	2 V
Output Voltage1-Min	0.8 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	2V
Dropout Voltage1-Max	0.15 V
Min Current Limit	180mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Adjustability	ADJUSTABLE
Load Regulation-Max(%)	1%
Line Regulation-Max (%/V)	0.2
Line Regulation	0.3 %/V
Operating Temperature TJ-Min	-40 °C
Load Regulation	1 %
Product	LDO Voltage Regulators
Input-Output Voltage Differential-Max	4.7 V
Input-Output Voltage Differential-Min	1 V
Product Category	LDO Voltage Regulators
Output Voltage Range	800 mV to 2 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5308YD6-TR Product Details

MIC5308YD6-TR Overview

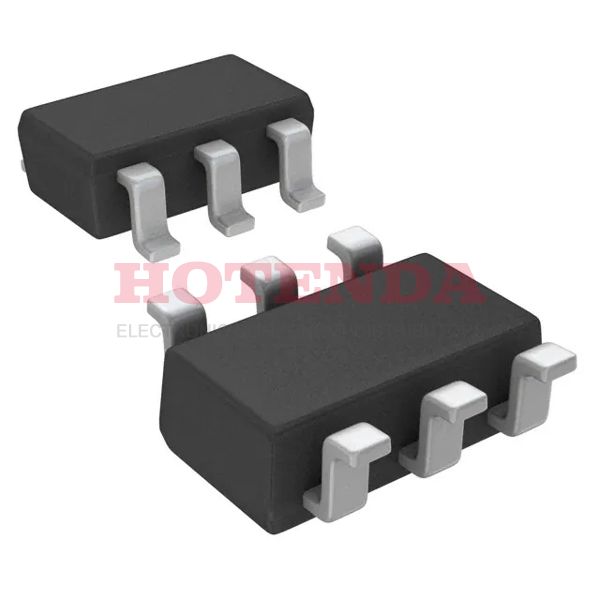

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a SOT-23-6 Thin, TSOT-23-6 case. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 150mA. A total of 6 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 6 pins on the chip. As an FYI, this IC voltage regulator has the basic part number MIC5308. An example of such a component would be this PMIC - Power Management ICs component. This device is regulated with the ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 150mA. It operates in the 23 uA Quiescent Current state. This model is a part of the -- Series and is of high quality. If the temperature is below 125°C, it is recommended that you utilize this feature. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature.
