Name: MIC5370-MGYMT-TR
Brand: Microchip Technology
SKU: MIC5370-MGYMT-TR
Price: 0.37000 USD
Availability: InStock

new-10%

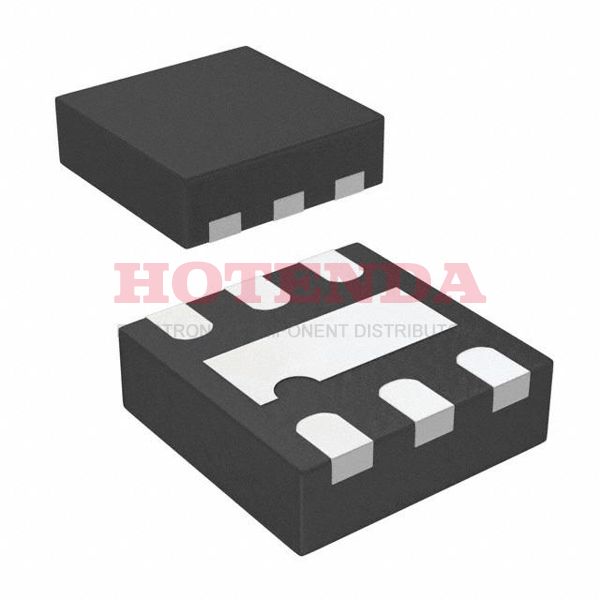

MIC5370-MGYMT-TR

Manufacturer part number:MIC5370-MGYMT-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.5 mm MIC5370 PMIC -- Series 6-UFDFN Exposed Pad, 6-TMLF®

Case Package:SOT-23

Datasheet:MIC5370-MGYMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad, 6-TMLF®
Surface Mount	YES
Number of Pins	6
Supplier Device Package	6-TMLF® (1.6x1.6)
Number of Terminals	6
Mounting Style	SMD/SMT
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5370
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Base Part Number	MIC5370
JESD-30 Code	S-PDSO-N6
Current - Supply (Max)	85μA
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	150mA
Output Configuration	Positive
Output Current	150 mA
Current - Output	150mA 150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.8V 2.8V
Number of Regulators	2
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	45μA
Voltage Dropout (Max)	0.31V @ 150mA 0.31V @ 150mA
Max Input Voltage	5.5V
PSRR	60dB (1kHz)
Seated Height-Max	0.6 mm
Dropout Voltage	155mV
Product Type	LDO Voltage Regulators
Min Output Voltage	1.8V
Output Voltage1-Max	2.884 V
Output Voltage1-Min	2.716 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.31 V
Min Current Limit	200mA
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Output Voltage2-Max	1.854 V
Output Voltage2-Min	1.746 V
Output Current2-Max	0.15 A
Dropout Voltage2-Max	0.31 V
Product Category	LDO Voltage Regulators
Width	1.6 mm
Length	1.6 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
