Name: MIC5385-SGFYMT-TR
Brand: Microchip Technology
SKU: MIC5385-SGFYMT-TR
Price: 0.25000 USD
Availability: InStock

new-10%

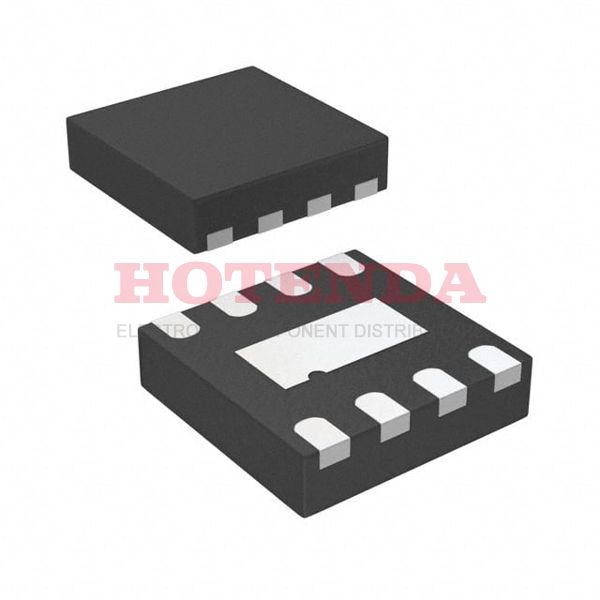

MIC5385-SGFYMT-TR

Manufacturer part number:MIC5385-SGFYMT-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.5 mm MIC5385 PMIC -- Series 8 8-UFDFN Exposed Pad, 8-TMLF®

Case Package:SOT-23

Datasheet:MIC5385-SGFYMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-UFDFN Exposed Pad, 8-TMLF®
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-TMLF® (2x2)
Number of Terminals	8
Mounting Style	SMD/SMT
Supplier Package	MLF EP
Input Voltage Range	2.5, 5.5 V
Maximum Input Voltage	5.5 V
Junction to Ambient	90 °C/W
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5385
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Linear Voltage Regulator
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Base Part Number	MIC5385
Pin Count	8
JESD-30 Code	S-PDSO-N8
Function	LDO
Number of Outputs	3
Voltage - Input (Max)	5.5V
Output Voltage	1.5V
Output Type	Fixed
Max Output Current	150mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.15 A
Current - Output	150mA, 150mA, 150mA
Quiescent Current	120μA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.5V 1.8V 3.3V
Number of Regulators	3
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	120μA
Voltage Dropout (Max)	0.38V @ 150mA 0.38V @ 150mA 0.31V @ 150mA
Max Input Voltage	5.5V
PSRR	70dB ~ 50dB (1kHz ~ 10kHz), 70dB ~ 50dB (1kHz ~ 10kHz), -
Seated Height-Max	0.6 mm
Dropout Voltage	155mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.155 V
Min Output Voltage	1.5V
Output Voltage1-Max	3.399 V
Output Voltage1-Min	3.201 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.31 V
Min Current Limit	200mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6 V
Output Voltage Accuracy	2 %
Adjustability	FIXED
Line Regulation	0.3 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	0.65 %
Product	LDO Voltage Regulators
Output Voltage2-Max	1.854 V
Output Voltage2-Min	1.746 V
Dropout Voltage2-Max	0.38 V
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Width	2 mm
Length	2 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5385-SGFYMT-TR Product Details

MIC5385-SGFYMT-TR Overview

The package contains a Tape & Reel (TR) case. In 8-UFDFN Exposed Pad, 8-TMLF® cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 3 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 150mA, 150mA, 150mA at the moment. 8 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 3 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. The regulator IC has 8 pins. I just wanted to let you know that this IC voltage regulator has the part number MIC5385 as its basic part number. In terms of components, this is an example of a PMIC - Power Management ICs component. This device is controlled by a FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR type regulator. In this case, the IC voltage regulator will be packed in the following way. When operating at maximum output current, the regulator IC reaches 150mA. It operates in the 120μA Quiescent Current state. It belongs to the -- Series of regulators. Under 125°C degrees, you should use the regulator IC. Temperatures below -40°C are not allowed on the chip.
