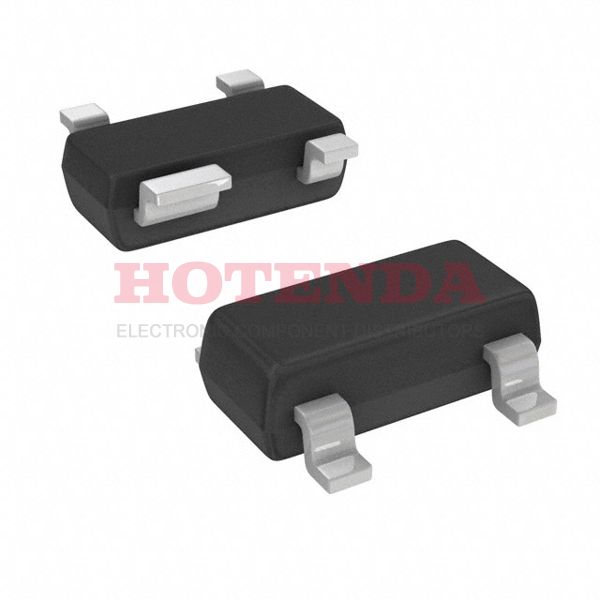

Name: TCM811SERCTR
Brand: Microchip Technology
SKU: TCM811SERCTR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Number of Pins	4
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2002
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	Matte Tin (Sn)
Subcategory	Power Management Circuits
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3.3V
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	TCM811S
Output	Push-Pull, Totem Pole
Pin Count	4
Power Supplies	3.3V
Number of Channels	1
Max Supply Voltage	5.5V
Min Supply Voltage	1V
Operating Supply Current	4.75μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active Low
Voltage - Threshold	2.93V
Number of Voltages Monitored	1
Reset Timeout	140ms Minimum
Min Reset Threshold Voltage	2.88V
Max Reset Threshold Voltage	2.98V
Threshold Voltage	+2.93V
Undervoltage Threshold	2.88V
Overvoltage Threshold	2.98V
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TCM811SERCTR Product Details

TCM811SERCTR Overview

This voltage supervisor has a total of 4 mounting terminals that can be used for mounting. Packaged in the form of a Tape & Reel (TR), power management is easy to use. For your reference, this IC power includes a list of 1 functions. There are a total of 1 channels on this supervisor, and they are arranged in a series. Please find attached TO-253-4, TO-253AA functions for your reference in this IC power. There are a lot of similarities between this IC management and other Simple Reset/Power-On Reset products. Packages are specified to have an average peak reflow temperature of 260. There is a voltage supply of 3.3V for the PMIC chip, and the chip conducts at that voltage. Power management conducts at a voltage of 1. The power management is mounted by Surface Mount. As a subcategory, this PMIC chip can be categorized as Power Management Circuits. In total, the power management has 4 pins in it. The pins of the power management system count 4. Supply voltage (Vsup) should be at least 1V for this power management. The maximum supply voltage (Vsup) in this PMIC should not exceed 5.5V volts. The mounting type of the supervisors is Surface MountThis power management is the recommended temperature range for the supervisors: -40°C~85°C TA. While in operation, this supervisor has a voltage output of Push-Pull, Totem Pole. There is a 4.75μA supply current present in the power management. If you want to search for similar IC managements of this manufacturer, you can always refer to TCM811S, which is the base power ics number. To operate this power management, you will need at least 3.3V volts of power.
