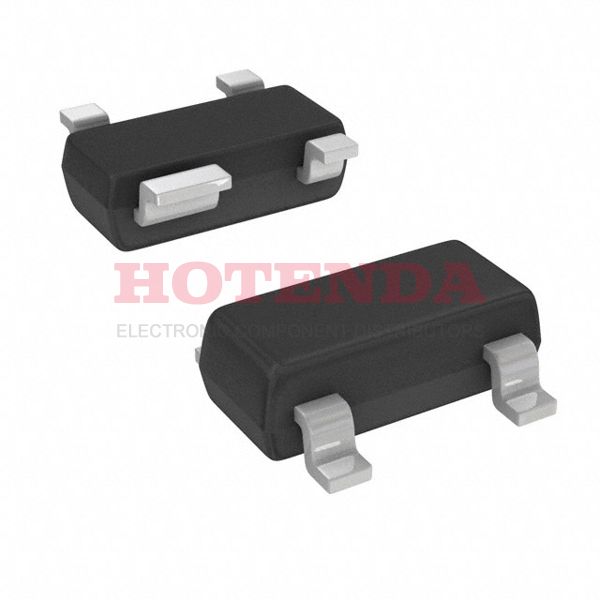

Name: TCM812TERCTR
Brand: Microchip Technology
SKU: TCM812TERCTR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Number of Pins	4
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2002
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	Matte Tin (Sn)
Subcategory	Power Management Circuits
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Supply Voltage	3.3V
Base Part Number	TCM812T
Output	Push-Pull, Totem Pole
Pin Count	4
Power Supplies	3.3V
Number of Channels	1
Max Supply Voltage	5.5V
Min Supply Voltage	1.1V
Operating Supply Current	4.75μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active High
Voltage - Threshold	3.08V
Number of Voltages Monitored	1
Reset Timeout	140ms Minimum
Min Reset Threshold Voltage	3.03V
Max Reset Threshold Voltage	3.14V
Threshold Voltage	+3.08V
Undervoltage Threshold	3.03V
Overvoltage Threshold	3.14V
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TCM812TERCTR Product Details

TCM812TERCTR Overview

As far as the mounting terminals of this voltage supervisor are concerned, it has 4 in total. A Tape & Reel (TR) package is used to package the power management. Please refer to this PMIC for 1 functions. Depending on the power managment ic you are looking at, you can find a total of 1 channels. Please find attached TO-253-4, TO-253AA functions for your reference in this IC power. With power management, you get a lot of benefits that you won't find in other Simple Reset/Power-On Reset products. IC management conducts in a 3.3V-voltage supply. During operation, the power ic is supplied with a voltage of 1. The power management is mounted by a Surface Mount-axis. In this case, this PMIC chip can be sub-categorized as a Power Management Circuits chip. There are a total of 4 pins on power management. There are 4 pins on the power managment ic. A voltage (Vsup) that doesn't fall below 1.1V as the minimum supply voltage (Vsup) should be applied to this IC power in order to ensure its proper operation. There should be no more than 5.5V volts of maximum supply voltage (Vsup) in this power management. In this case, Surface Mount is the recommended mounting type. The supervisors should be set to the following temperature: -40°C~85°C TA. Power management has an output of Push-Pull, Totem Pole during operation. There is a supply current of 4.75μA for the power management. To find similar IC managements from the manufacturer, you can always search by TCM812T. In order to operate this power management, it requires 3.3V volts of power.
