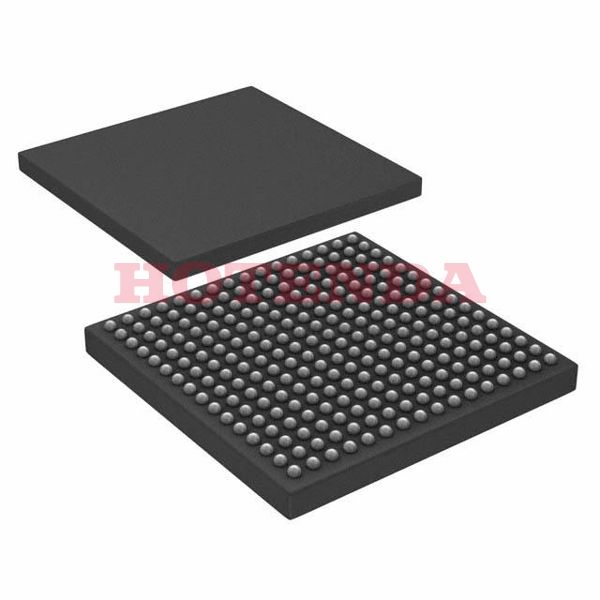

A2F500M3G-1FG256I Overview
There is a FBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. 117 I/Os are available for transferring data more efficiently. It is powered from a supply voltage of 1.5V. Field Programmable Gate Arrays family FPGA part. The device has 66 outputs that are integrated into it. Total terminations are 256. There is a maximum RAM si64kBe of 64kB on this FPGA module, which is necessary to ensure the normal operation of the program. It has a total of 256 pins that are designed for it. Designers can fully utilize its flexibility with 1.5V supply voltage. This module is capable of operating at a maximum temperature of 100°C. -40°C should be higher than the operating temperature. There are 500000 gates that make up its basic building block. There are a total of 24 logic blocks (LABs) that form the basic building blocks of this program. During the process of storing and transferring data, 11520 registers are used. With a frequency of 100MHz, it delivers high efficiency. It is estimated that the maximum frequency of this FPGA is around 120MHz. For the development of Telemedicine-capable devices, the ARM core architecture is incorporated into this FPGA.
A2F500M3G-1FG256I Features
117 I/Os
256 LABs/CLBs
100°C gates
24 logic blocks (LABs)
11520 registers
Operating from a frequency of 100MHz
A2F500M3G-1FG256I Applications
There are a lot of Microsemi
A2F500M3G-1FG256I FPGAs applications.
- Device controllers
- Software-defined radio
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
- Filtering and communication encoding
