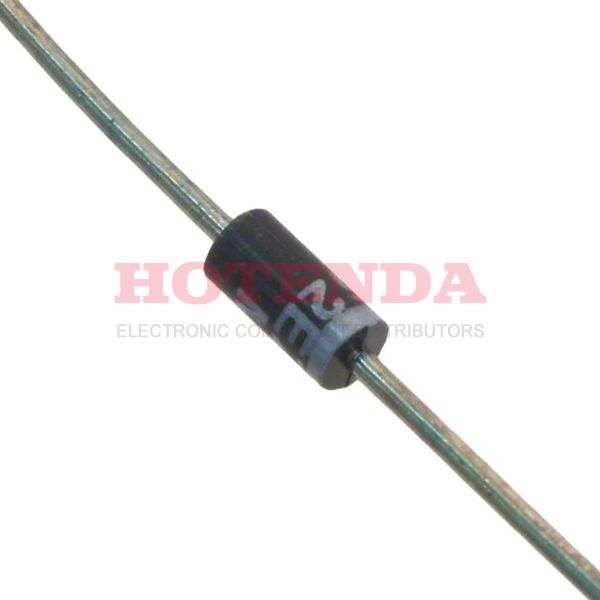

Name: 2EZ130D/TR8
Brand: Microsemi Corporation
SKU: 2EZ130D/TR8
Availability: InStock

new-10%

2EZ130D/TR8

Manufacturer part number:2EZ130D/TR8

Manufacturer:Microsemi Corporation

Description:400Ohms ±20% 130V 500nA @ 98.8V -65°C~150°C 2W DO-204AL, DO-41, Axial

Case Package:SOT-23

Datasheet:2EZ130D/TR8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	OBSOLETE (Last Updated: 1 month ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Number of Pins	2
Supplier Device Package	DO-204AL (DO-41)
Operating Temperature	-65°C~150°C
Packaging	Tape & Reel (TR)
Published	1999
Tolerance	±20%
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Max Power Dissipation	2W
Base Part Number	2EZ130
Impedance	400Ohm
Element Configuration	Single
Current - Reverse Leakage @ Vr	500nA @ 98.8V
Voltage - Forward (Vf) (Max) @ If	1.2V @ 200mA
Power - Max	2W
Max Reverse Leakage Current	500nA
Impedance-Max	400Ohms
Voltage - Zener (Nom) (Vz)	130V
Zener Voltage	130V
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

2EZ130D/TR8 Product Details

2EZ130D/TR8 Overview

This electrical device requires reverse leakage current of 500nA @ 98.8V.Reverse leakage current reaches 500nA at its maximum.The maximum voltage - Zener (Nom) is reduced to 130V during operation.Zener single diode reaches 1.2V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
