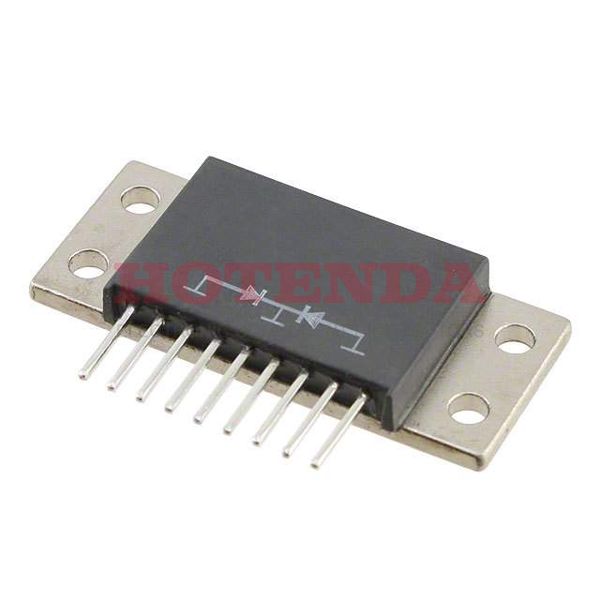

FST153100D

Name: FST153100D
Brand: Microsemi Corporation
SKU: FST153100D
Availability: InStock

new-10%

Manufacturer part number:FST153100D

Manufacturer:Microsemi Corporation

Description:FST153100D datasheet pdf and Diodes - Rectifiers - Arrays product details from Microsemi Corporation stock available on our website

Case Package:SOT-23

Datasheet:FST153100D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Chassis Mount, Surface Mount
Mounting Type	Chassis Mount
Package / Case	TO-249-9, TO-249AA Variant
Diode Element Material	SILICON
Packaging	Bulk
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	9
ECCN Code	EAR99
Additional Feature	REVERSE ENERGY TESTED
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Terminal Form	THROUGH-HOLE
JESD-30 Code	R-XSFM-T9
Operating Temperature (Max)	175°C
Operating Temperature (Min)	-55°C
Number of Elements	2
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	1.5mA @ 100V
Voltage - Forward (Vf) (Max) @ If	940mV @ 75A
Case Connection	ISOLATED
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	100V
Max Reverse Voltage (DC)	100V
Average Rectified Current	75A
Number of Phases	1
Non-rep Pk Forward Current-Max	1200A
Diode Configuration	1 Pair Series Connection
Radiation Hardening	No
RoHS Status	RoHS Compliant
