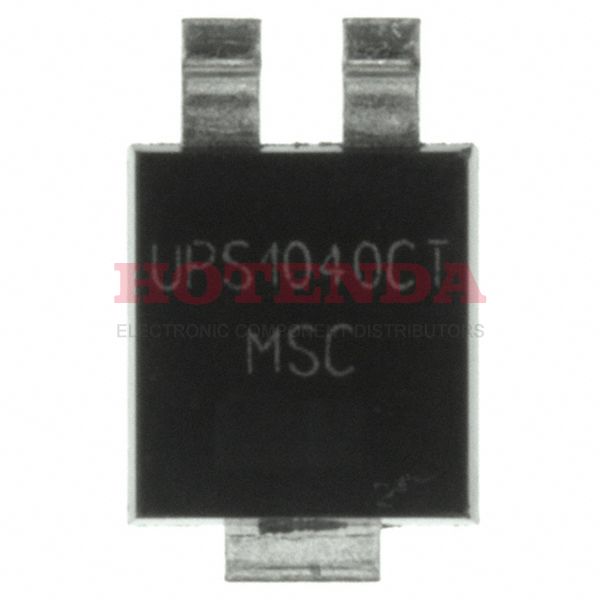

UPS1040CTE3

Name: UPS1040CTE3
Brand: Microsemi Corporation
SKU: UPS1040CTE3
Availability: InStock

new-10%

Manufacturer part number:UPS1040CTE3

Manufacturer:Microsemi Corporation

Description:UPS1040CTE3 datasheet pdf and Diodes - Rectifiers - Arrays product details from Microsemi Corporation stock available on our website

Case Package:SOT-23

Datasheet:UPS1040CTE3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	OBSOLETE (Last Updated: 2 weeks ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	Powermite®3
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	1997
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	UPS1040CT
Pin Count	2
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	150μA @ 35V
Voltage - Forward (Vf) (Max) @ If	570mV @ 10A
Operating Temperature - Junction	-55°C~125°C
Application	EFFICIENCY
Forward Voltage	570mV
Max Reverse Voltage (DC)	40V
Average Rectified Current	10A
Number of Phases	1
Peak Non-Repetitive Surge Current	150A
Diode Configuration	1 Pair Common Cathode
RoHS Status	RoHS Compliant
