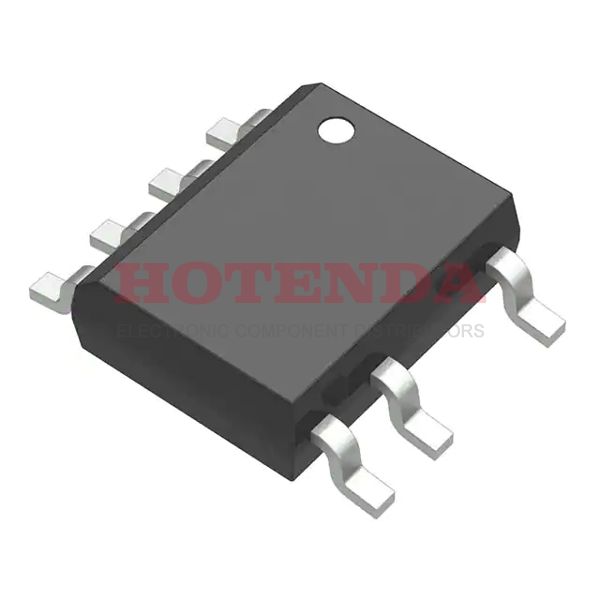

HFC0500GS Overview
An embedded ac to dc converter is included in 8-SOIC (0.154, 3.90mm Width), 7 Leads package.In Tube case, the ac dc converter is available.In this case, the AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~125°C TJ °C.The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.In this AC to DC transformer, the switching frequency is 25kHz .This AC/DC converter is suitable for operation in the range of 9V~24V supply voltage (Vcc/Vdd).As a result, it has a total of 7 terminations.The ac dc converters is suitable for mounting by Surface Mount .During a 24V -voltage supply, the interface IC conducts.
HFC0500GS Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 25kHz
Operating Supply Voltage at the range of 24V
HFC0500GS Applications
There are a lot of Monolithic Power Systems Inc. HFC0500GS AC DC Converters applications.
- AC/DC Adaptors/Chargers for PDAs
- Power Adaptors
- AC-DC Output Power Conversion Applications
- Automotive Clusters
- Adapters for Handheld Electronics
- Power tools
- Cellular phone chargers
- Standby and Auxiliary Power Supplies
- Automotive Infotainment
- Battery Chargers
