Name: MP2351DK-LF-Z
Brand: Monolithic Power Systems Inc.
SKU: MP2351DK-LF-Z
Availability: InStock

MP2351DK-LF-Z

Manufacturer part number:MP2351DK-LF-Z

Manufacturer:Monolithic Power Systems Inc.

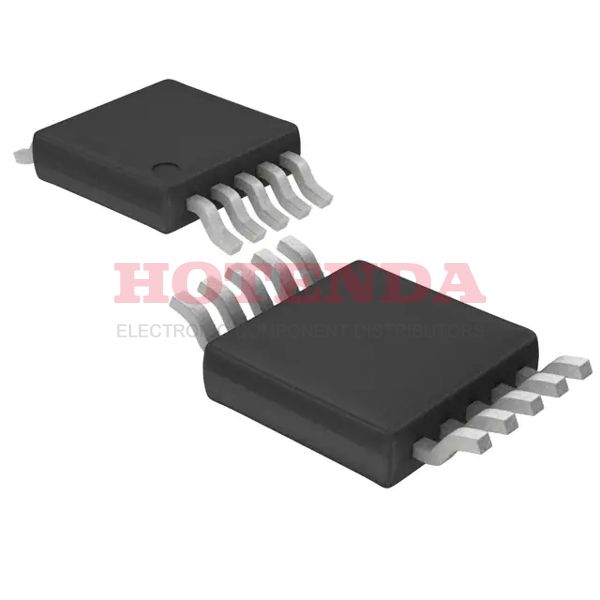

Description:10 Terminals 4.75V DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1.4MHz Tape & Reel (TR) 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MP2351DK-LF-Z Datasheet PDF

RoHs Status:non-compliant

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2007
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	10
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Function	Step-Down
Number of Outputs	1
Efficiency	93 %
Voltage - Input (Max)	23V
Output Voltage	16V
Output Type	Adjustable
Max Output Current	1.5A
Operating Supply Voltage	23V
Voltage - Input (Min)	4.75V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Max Output Voltage	16V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	1.4MHz
Synchronous Rectifier	Yes
Min Output Voltage	1.23V
Length	3mm
Width	3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MP2351DK-LF-Z Product Details

MP2351DK-LF-Z Overview

As a result of the use of the Tape & Reel (TR) package, the performance of this voltage regulator is optimized. As you can see, this harley voltage regulator contains 10 terminations. There are two types of analog ICs on this voltage regulator. The first type is a SWITCHING REGULATOR-type IC. Space-saving 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) packages are available for this harley voltage regulator. There are 1 outputs configured on the voltage regulator. ICs such as this voltage regulator are capable of generating Adjustable outputs through their output pins. The voltage regulator 12v fits the Surface Mount mounting hole. This voltage regulator 12v should operate at a temperature of -40°C~85°C TA when operating. 1.4MHz is the switching frequency of this DC-DC switching regulator. A dc to dc voltage regulator's minimum input voltage of 4.75V is required for this voltage regulator to operate. The maximum input voltage of voltage regulator is 23V. As a result of its peak reflow temperature, this voltage regulator is virtually indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 12V is provided. Voltage of voltage regulator can be delivered at 16V volts. For this switching regulator, it is recommended that the output voltage is at least 1.23V volts. In order to meet the requirements of the switching regulator operation, the maximum output current reaches 1.5A A. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 16V. DC-DC switching regulator with 23V supply voltage.
