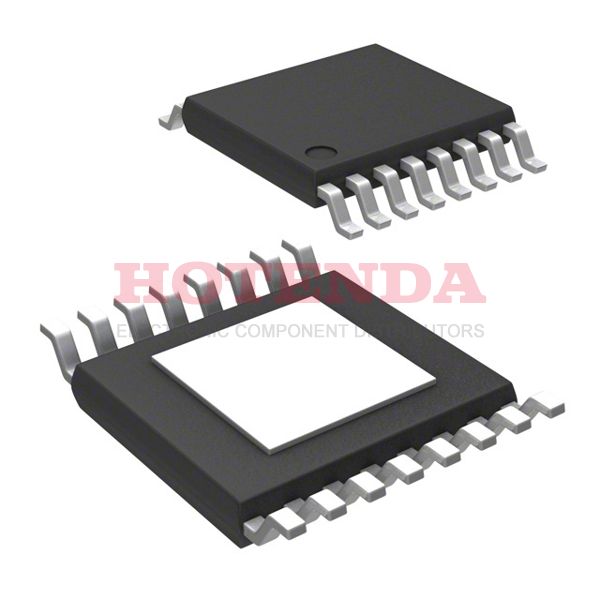

MPQ2420AGF-AEC1 Overview
There is an optimized performance in this voltage regulator because it utilizes the Tube package. In this voltage regulator, there are a total of 16 terminations. As this regulator voltage is equipped with an analog IC of the type SWITCHING REGULATOR, it is a SWITCHING REGULATOR-type voltage regulator. Space-saving 16-TSSOP (0.173, 4.40mm Width) Exposed Pad packages are available for this harley voltage regulator. There are 1 outputs configured on the voltage regulator. There are output pins on this DC DC switching regulator that generate Adjustable output. This switching regulator is designed to fit the Surface Mount mounting system. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~125°C TJ. This voltage regulator 12v reaches a switching frequency of 1MHz. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. The adjusting voltage regulator's output voltage (Min/Fixed) is 1V. Featuring a 300mA output current, dc to dc voltage regulator offers maximum design flexibility. The maximum input voltage of voltage regulator is 75V. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 24V. 67.5V's maximal output voltage allows adjusting voltage regulator to operate easily. In the Automotive, AEC-Q100 family, this part palys an important role in DC DC switching regulator's traget applications.
MPQ2420AGF-AEC1 Features
1 outputs
MPQ2420AGF-AEC1 Applications
There are a lot of Monolithic Power Systems Inc. MPQ2420AGF-AEC1 Voltage Regulators applications.
- Industrial robots
- Game consoles
- Terrestrial set-top boxes
- Imported equipment
- Electric water heaters
- Injection molding machinery
- Direct power supply system
- Shearing machines
- PSRR circuits
- Lathes
