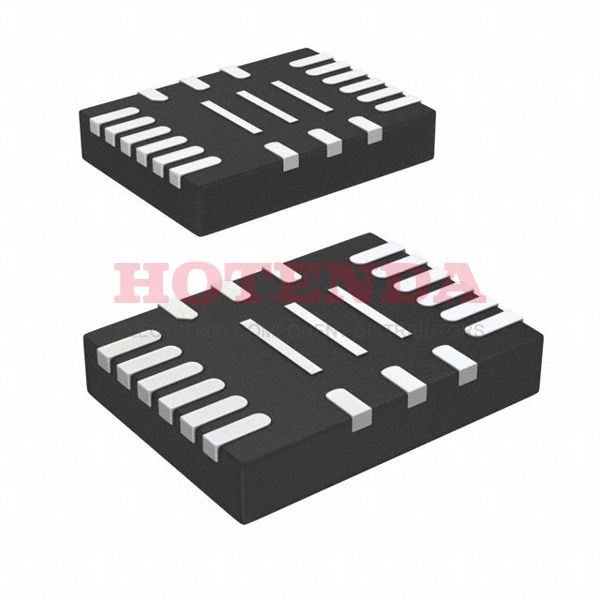

Name: NB672GL-Z
Brand: Monolithic Power Systems Inc.
SKU: NB672GL-Z
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	21-PowerVFQFN
Number of Pins	21
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
Published	2015
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	21
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	UNSPECIFIED
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Function	Step-Down
Number of Outputs	1
Output Voltage	5.5V
Output Type	Adjustable
Max Output Current	6A
Operating Supply Voltage	22V
Input Voltage-Nom	12V
Min Supply Voltage	5V
Analog IC - Other Type	SWITCHING REGULATOR
Operating Supply Current	400μA
Output Configuration	Positive
Max Output Voltage	5.5V
Voltage - Output (Min/Fixed)	0.604V
Topology	Buck
Frequency - Switching	500kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	604mV
Voltage - Output (Max)	5.5V
Length	4mm
Width	3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

NB672GL-Z Product Details

NB672GL-Z Overview

optimized performance is achieved by utilizing the Tape & Reel (TR) package in this voltage regulator. Throughout this voltage regulator, there are 21 terminations. There are two types of analog ICs in this voltage regulator 12v: SWITCHING REGULATOR ICs, which are the ones used in older voltage regulator 12vs. The space-saving 21-PowerVFQFN package is available for this voltage regulator. The voltage regulator 12v has 1 outputs. The adjusting voltage regulator generates Adjustable output. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. During switching regulator operation, the operating temperature should remain at -40°C~125°C TJ. This voltage regulator 12v reaches a switching frequency of 500kHz. As shown in the table below, adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.604V. A regulator voltage's peak reflow temperature amounts to 260 being indestructible. The voltage regulator 12v is designed to provide a nominal input voltage of 12V for operation. A voltage of 5.5V volts can be generated by DC DC switching regulator. There are 21 pins used for switching regulator operation. For this switching regulator, we recommend keeping the output voltage at at least 604mV volts. A 6A A maximum output current is required to meet the switching regulator operation requirements. By using the 5.5V's maximal output voltage, adjusting voltage regulator can operate easily. With a maximum output voltage of 5.5V, DC DC switching regulator has a very high efficiency. With 22V as the supply voltage, this DC-DC switching regulator will operate. In this case, a dc to dc voltage regulator's minimum supply voltage of 5V volts is required to ensure reliable performance. DC-DC switching regulator operating on 400μA supply voltage.
