Name: S21F
Brand: NKK Switches
SKU: S21F
Price: 12.43000 USD
Availability: InStock

new

S21F

Manufacturer part number:S21F

Manufacturer:NKK Switches

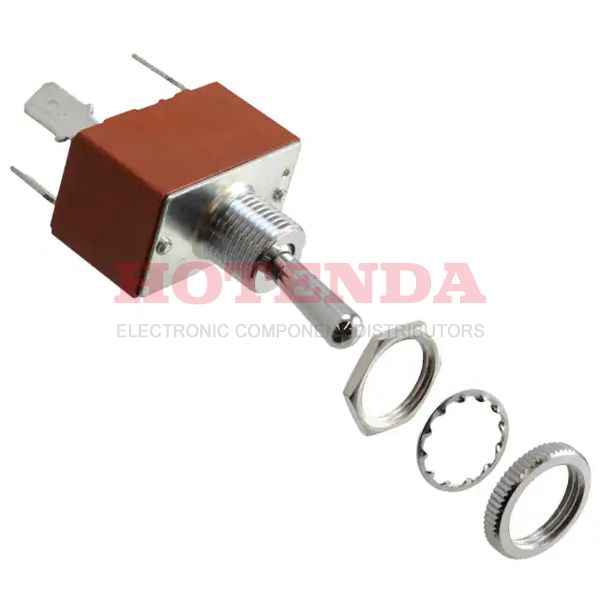

Description:Toggle Switch DPST On-Off (maintained) 250Vac 15A/125Vac 0.25 in. Tab Quick-Connect Terminal

Case Package:SOT-23

Datasheet:S21F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Silver
Mount	Panel
Mounting Type	Panel Mount
Actuator Material	Brass, Chrome Plated
Operating Temperature	-10°C~70°C
Packaging	Bulk
Published	2012
Series	S
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Quick Connect
ECCN Code	EAR99
Additional Feature	MEDIUM RATED
HTS Code	8536.50.90.65
Voltage - Rated DC	30V
Current Rating (Amps)	15A AC 20A DC
Orientation	Vertical
Depth	18.6mm
Current Rating	20A
Termination Style	Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC	125V
Actuator Type	Standard Round
Circuit	DPST
Switch Function	On-Off
Panel Cutout Dimensions	Circular - 12.50mm Dia
Contact Resistance	0.01mOhm
Insulation Resistance	1000000000Ohm
Max Voltage Rating (AC)	250V
Max Current Rating	15A
Dielectric Withstanding Voltage	2000VAC V
Electrical Life	25,000 Cycles
Illumination	Non-Illuminated
Max Voltage Rating (DC)	30V
Contact Current Rating	15A
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	M12 x 1
Contact (AC) Max Rating R Load	[email protected]
Contact Timing	BREAK-BEFORE-MAKE
Contact (DC) Max Rating R Load	[email protected]
Contact (AC) Max Rating I Load	[email protected]
Bushing Type	M12P1
Length	31.2mm
Width	18.6mm
Actuator Length	17.50mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
