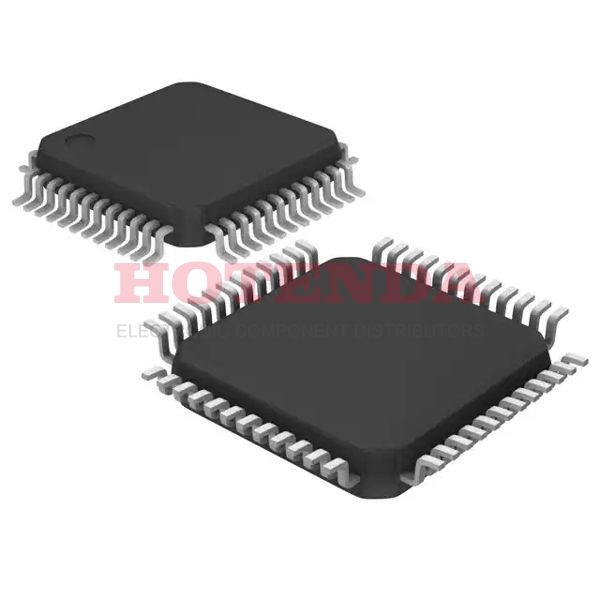

LPC11E68JBD48E Description
The NXP LPC11E68JBD48E is a 32bit ARM cortex-M0+ microcontroller. The peripheral complement includes a DMA controller, a CRC engine, two I2C-bus interfaces, up to five USARTs, two SSP interfaces, PWM/timer subsystem with six configurable multi-purpose timers, a Real-Time Clock, one 12-bit ADC, temperature sensor, function-configurable I/O ports, and up to 80 general-purpose I/O pins.
LPC11E68JBD48E Features
RTC in always-on power domain with separate battery supply pin and 32KHz oscillator
Analogue peripherals (Temperature sensor), analogue peripherals and serial interfaces
Clock generation, power control: Power-On Reset (POR), brownout detect
Unique device serial number for identification
Windowed WatchDog timer (WWDT)
Serial Wire Debug (SWD) and JTAG boundary scan modes supported
Micro Trace Buffer (MTB) supported
ROM API support (USART, I2C, DMA drivers)
ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
AHB Multilayer matrix and System tick timer
LPC11E68JBD48E Applications
Three-phase e-mete
Car radio
GPS tracker
Medical monitor
Gaming accessories
PC peripherals
