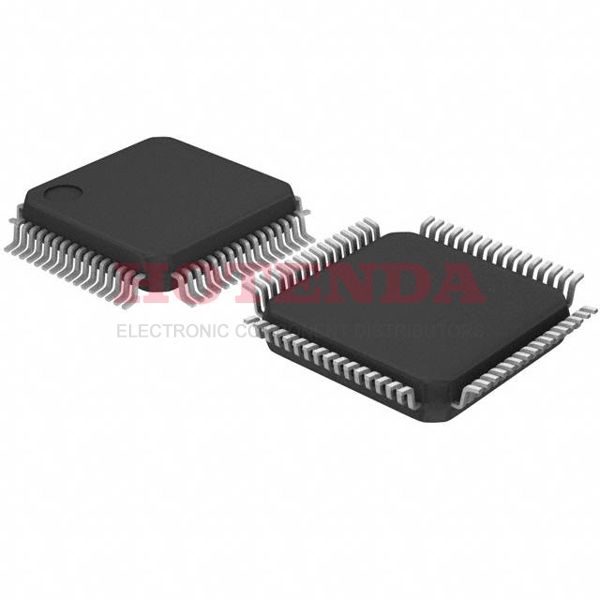

Name: LPC844M201JBD64E
Brand: NXP USA Inc.
SKU: LPC844M201JBD64E
Price: 2.54000 USD
Availability: InStock

new-10%

LPC844M201JBD64E

Manufacturer part number:LPC844M201JBD64E

Manufacturer:NXP USA Inc.

Description:64KB 64K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller LPC84x Series 3.3V 64-LQFP

Case Package:SOT-23

Datasheet:LPC844M201JBD64E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Surface Mount
Package / Case	64-LQFP
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	LPC84x
Published	2010
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	S-PQFP-G64
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	1.8V
Oscillator Type	Internal/External
Number of I/O	54
Speed	30MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, Cap Sense, DMA, POR, PWM, WDT
Clock Frequency	25MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	32
Data Converter	A/D 12x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
ROM (words)	65536
On Chip Program ROM Width	8
RAM (bytes)	8192
Length	10mm
Height Seated (Max)	1.6mm
Width	10mm
RoHS Status	ROHS3 Compliant

LPC844M201JBD64E Product Details

LPC844M201JBD64E Overview

There is a 64-LQFP package available. The board has 54 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~105°C TA is the temperature range at which this Microcontroller operates. LPC84x-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 64KB 64K x 8. Powered by a ARM® Cortex®-M0+ Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 64. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. Using YES PWM channels, the device works. As far as the clock frequency is concerned, it operates at 25MHz clock speed.
