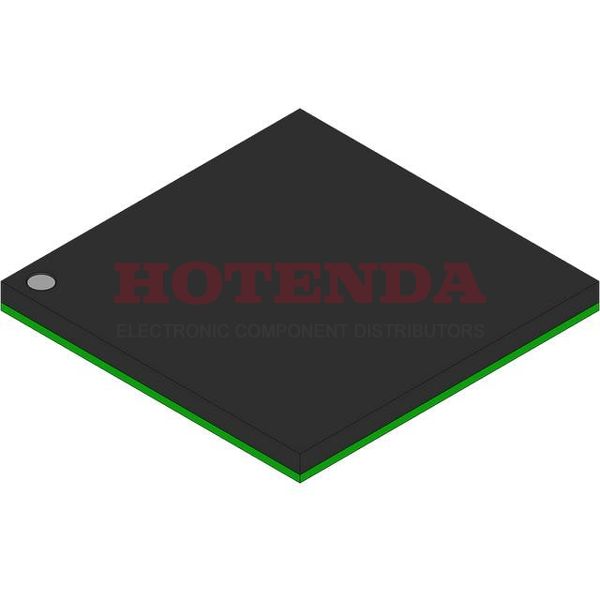

16KB 4K x 32 ROM Coldfire V2 32-Bit Microcontroller MCF527x Series MCF5272 3.3V 196-LBGA
SOT-23
MCF5272VM66 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
10 Weeks
Mounting Type
Surface Mount
Package / Case
196-LBGA
Surface Mount
YES
Operating Temperature
0°C~70°C TA
Packaging
Tray
Series
MCF527x
Published
1997
JESD-609 Code
e1
Part Status
Not For New Designs
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
196
ECCN Code
3A991.A.2
Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code
8542.31.00.01
Terminal Position
BOTTOM
Terminal Form
BALL
Peak Reflow Temperature (Cel)
260
Supply Voltage
3.3V
Terminal Pitch
1mm
Time@Peak Reflow Temperature-Max (s)
40
Base Part Number
MCF5272
JESD-30 Code
S-PBGA-B196
Qualification Status
Not Qualified
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
3V
Oscillator Type
External
Number of I/O
32
Speed
66MHz
RAM Size
1K x 32
Voltage - Supply (Vcc/Vdd)
3V~3.6V
uPs/uCs/Peripheral ICs Type
MICROPROCESSOR, RISC
Core Processor
Coldfire V2
Peripherals
DMA, WDT
Clock Frequency
66MHz
Program Memory Type
ROM
Core Size
32-Bit
Program Memory Size
16KB 4K x 32
Connectivity
EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB
Bit Size
32
Address Bus Width
23
Boundary Scan
YES
Low Power Mode
YES
External Data Bus Width
32
Format
FIXED POINT
Integrated Cache
YES
Length
15mm
Height Seated (Max)
1.75mm
Width
15mm
RoHS Status
ROHS3 Compliant
In-Stock:2484 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$26.60000
$26.6
10
$24.52800
$245.28
25
$23.42600
$585.65
100
$20.94560
$2094.56
MCF5272VM66 Product Details
MCF5272VM66 Description
MCF5272VM66 is a microcontroller from the manufacturer NXP USA Inc with the supply voltage of 3.3V. The operating temperature of the MCF5272VM66 is 0°C~70°C TA and its Program Memory Size is 16KB 4K x 32. MCF5272VM66 has 196 pins and it is available in tray packaging way.
MCF5272VM66 Features
Static Version 2 ColdFire variable-length RISC processor
32-bit address and data path on-chip
66-MHz processor core and bus frequency
Sixteen general-purpose 32-bit data and address registers
Multiply-accumulate unit (MAC) for DSP and fast multiply operations
On-chip memories
4-Kbyte SRAM on CPU internal bus
16-Kbyte ROM on CPU internal bus
1-Kbyte instruction cache
Power management
Fully-static operation with processor sleep and whole-chip stop modes
Very rapid response to interrupts from the low-power sleep mode (wake-up feature)
Clock enable/disable for each peripheral when not used
Software-controlled disable of external clock input for virtually zero power consumption (low-power stop mode)
MCF5272VM66 Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
Related Products
Similar Embedded - Microcontrollers from NXP USA Inc. and other manufacturers
