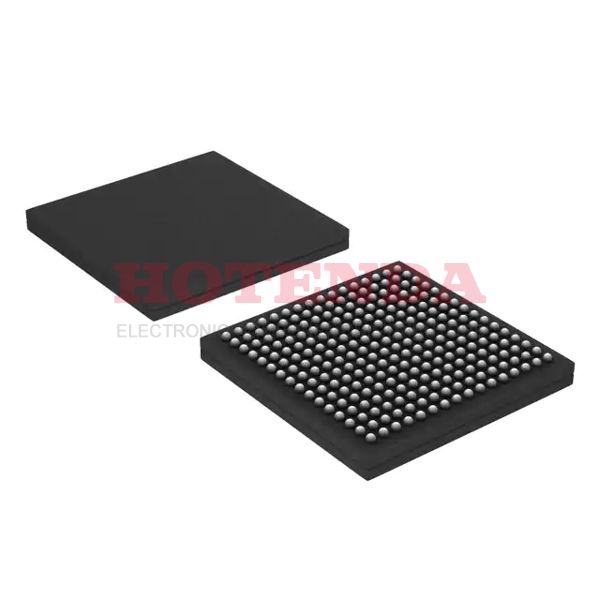

MCF5329CVM240 Description
The Ethernet, USB, CAN, and ColdFire V3 MCF5329CVM240 series ColdFire V3 Microprocessor. The MCF532x family of microprocessors responds to the expanding need for human-machine interface (HMI) and industrial control applications while maintaining a rich degree of connectivity and security integration by introducing the first integrated LCD controller on a ColdFire device.
MCF5329CVM240 Features
Queued Serial Peripheral Interface (QSPI)
Pulse Width Modulation (PWM) module
Real Time Clock
Four 32-bit DMA Timers
Software Watchdog Timer
Four Periodic Interrupt Timers (PITs)
Phase Locked Loop (PLL)
Interrupt Controllers (x2)
DMA Controller
FlexBus (External Interface)
Chip Configuration Module (CCM)
Reset Controller
General Purpose I/O interface
Power management
Liquid Crystal Display Controller (LCDC)
Embedded Voice-over-IP (VoIP) system solution
SDR/DDR SDRAM Controller
Universal Serial Bus (USB) Host Controller
Universal Serial Bus (USB) On-the-Go (OTG) controller
Synchronous Serial Interface (SSI)
Fast Ethernet Controller (FEC)
Cryptography Hardware Accelerators
FlexCAN Module
Three Universal Asynchronous Receiver Transmitters (UARTs)
I2C Module
Version 3 ColdFire variable-length RISC processor core
System debug support
JTAG support for system level board testing
On-chip memories
– 16-Kbyte unified write-back cache
– 32-Kbyte dual-ported SRAM on CPU internal bus, accessible by core and non-core bus masters (e.g., DMA, FEC, LCD controller, and USB host and OTG)
MCF5329CVM240 Applications
