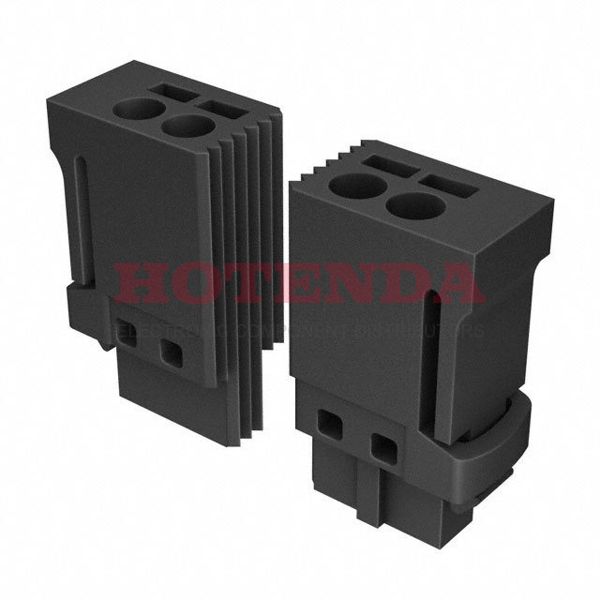

Name: XW4H-05A1
Brand: Omron Electronics Inc-EMC Div
SKU: XW4H-05A1
Price: 5.95000 USD
Availability: InStock

new-10%

XW4H-05A1

Manufacturer part number:XW4H-05A1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XW4H-05A1 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XW4H-05A1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-45°C~125°C
Packaging	Bulk
Series	XW4
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	5
Color	Black
Pitch	0.100 2.54mm
Insulation Height	0.193 4.90mm
Reach Compliance Code	unknown
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	160V
Number of Levels	1
Current	6A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	20-26 AWG
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14 ~ 0.5mm2
Wire Strip Length	6mm
RoHS Status	RoHS Compliant

XW4H-05A1 Product Details

XW4H-05A1 Overview

Mounting type Free Hanging (In-Line) is selected for the device.Packaging the product involves using a Bulk case.There is a product in the XW4 Series.A number of benefits can be derived from the Latch Lock feature of this application.Part Free Hanging is mounted to the part.Operating temperature is set to -45°C~125°C.Other Plug, Female Sockets products share lots of benefits with this part.
