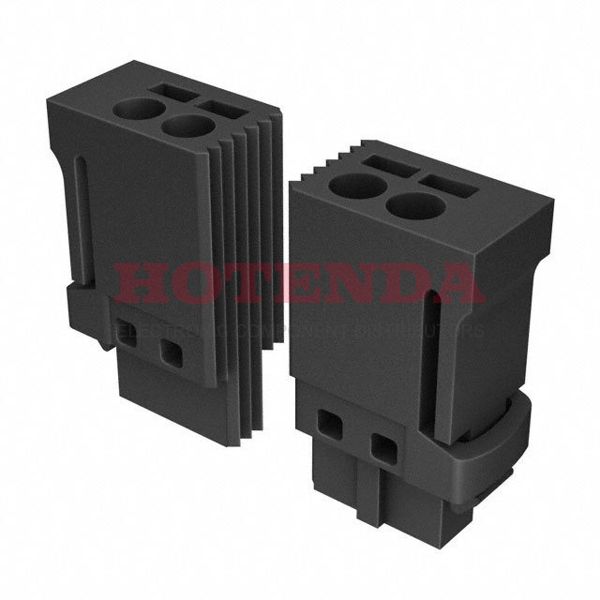

Name: XW4H-10A1
Brand: Omron Electronics Inc-EMC Div
SKU: XW4H-10A1
Availability: InStock

new-10%

XW4H-10A1

Manufacturer part number:XW4H-10A1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XW4H-10A1 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XW4H-10A1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-45°C~125°C
Packaging	Bulk
Series	XW4
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	10
Color	Black
Pitch	0.100 2.54mm
Insulation Height	0.193 4.90mm
Reach Compliance Code	unknown
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	160V
Number of Levels	1
Current	6A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	20-26 AWG
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14 ~ 0.5mm2
Wire Strip Length	6mm
RoHS Status	RoHS Compliant

XW4H-10A1 Product Details

XW4H-10A1 Overview

This device has a Free Hanging (In-Line) mounting type.It has been determined that a Bulk case is necessary to package the product.The product belongs to the XW4 Series.Its Latch Lock feature renders it more powerful in many ways.It is mounted by Free Hanging.Device runs at -45°C~125°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
