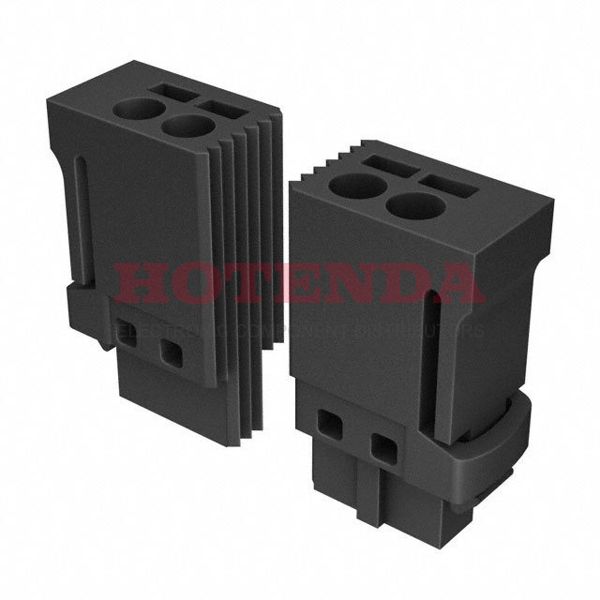

Name: XW4H-12A1
Brand: Omron Electronics Inc-EMC Div
SKU: XW4H-12A1
Availability: InStock

new-10%

XW4H-12A1

Manufacturer part number:XW4H-12A1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XW4H-12A1 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XW4H-12A1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-45°C~125°C
Packaging	Bulk
Series	XW4
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	12
Color	Black
Pitch	0.100 2.54mm
Insulation Height	0.193 4.90mm
Reach Compliance Code	unknown
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	160V
Number of Levels	1
Current	6A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	20-26 AWG
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14 ~ 0.5mm2
Wire Strip Length	6mm
RoHS Status	RoHS Compliant

XW4H-12A1 Product Details

XW4H-12A1 Overview

This device has a mounting type of Free Hanging (In-Line).A Bulk case is used to package the product.It's part of the XW4 Series.It is more powerful in many ways due to its Latch Lock feature.The part is mounted by Free Hanging.Devices operate at -45°C~125°C operating temperatures.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
