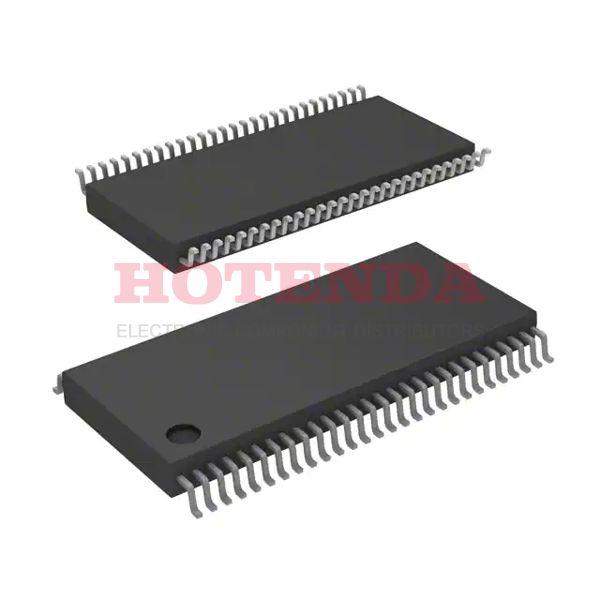

74ALVC16821MTDX Overview
As a result, it is packaged as 56-TFSOP (0.240, 6.10mm Width). It is included in the package Tape & Reel (TR). There is a Tri-State, Non-Invertedoutput configured with it. This trigger is configured to use Positive Edge. Surface Mountis occupied by this electronic component. A voltage of 1.65V~3.6Vis used as the supply voltage. It is at -40°C~85°C TAdegrees Celsius that the system is operating. There is D-Type type of electronic flip flop associated with this device. FPGAs belonging to the 74ALVCseries contain this type of chip. You should not exceed 250MHzin the output frequency of the device. In total, there are 2 elements. Despite external influences, it consumes 40μAof quiescent current. You can search similar parts based on 74ALVC16821. A JK flip flop with a 6pFfarad input capacitance is used here.
74ALVC16821MTDX Features
Tape & Reel (TR) package
74ALVC series
74ALVC16821MTDX Applications
There are a lot of ON Semiconductor 74ALVC16821MTDX Flip Flops applications.
- Single Down Count-Control Line
- Buffered Clock
- Power down protection
- Digital electronics systems
- Convert a momentary switch to a toggle switch
- Cold spare funcion
- Buffer registers
- ESCC
- Divide a clock signal by 2 or 4
- Reduced system switching noise
