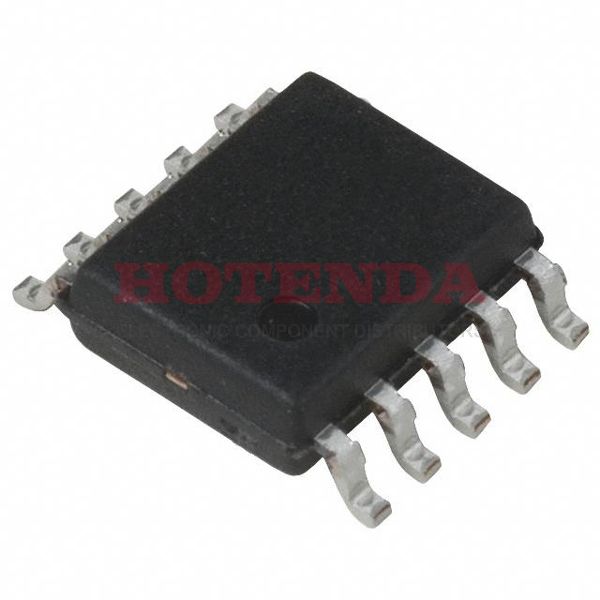

FAN7601BGX Overview
An embedded ac to dc converter is included in 10-SOP (0.154, 3.90mm Width) package.The AC/DC power converter type is Tape & Reel (TR) .In this case, the AC/DC converter is mounted in the way of Surface Mount .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.The switching frequency reaches Up to 300kHz .Supply voltage (Vcc/Vdd) does not need to exceed 8V~20V .It contains 10 pins.Surface Mount is the recommended mounting method for the ac dc converters.Similar acdc converters can be found using the FAN7601 family.A total of 1 outputs are available for processing.250mA is set as the output current.The output voltage of the AC/DC converter is 12V .AC to DC converter is capable of handling a maximum supply current of 4mA A.
FAN7601BGX Features
Packaged with 10-SOP (0.154, 3.90mm Width)
Switching Frequency at Up to 300kHz
With 10 pins
Output Current at 250mA
FAN7601BGX Applications
There are a lot of ON Semiconductor FAN7601BGX AC DC Converters applications.
- AC?DC USB chargers for Cameras
- Handheld/Battery-Powered Systems
- Adapters for Handheld Electronics
- USB-PD 2.0
- Consumer electronics
- Automotive Telematics
- Set-top boxes
- Power Adaptors
- Standby power
- Universal input AC/DC adapters (15W - 45W)
