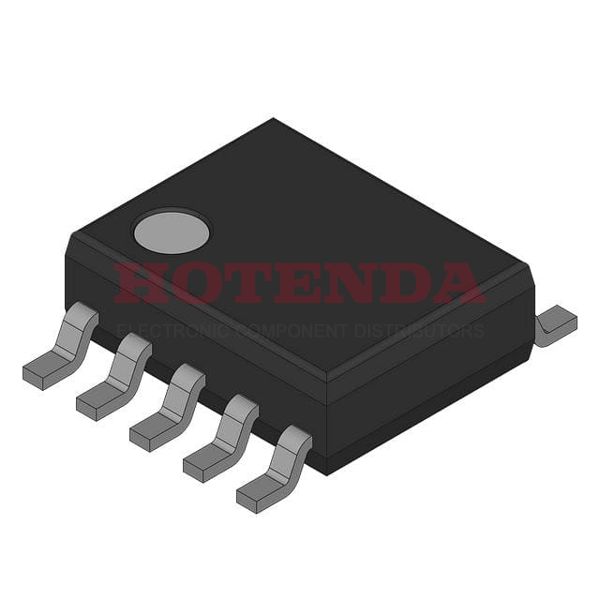

FAN7601GX Overview
There is a ac to dc converter embedded in package 10-SOP (0.154, 3.90mm Width) .The ac dc converter is available in Tape & Reel (TR) case.It is mounted in the way of Surface Mount .Ideally, the ac dc converter should be operated at a temperature of -25°C~125°C TA degrees Celsius.Up to 300kHz is the switching frequency.It can be used within the range of 8V~20V supply voltage (Vcc/Vdd).On this ac/dc converter, there are 10 pins.The ac dc converters are suitable for mounting by Surface Mount .It is possible to search for similar acdc converters by using the FAN7601 family.A total of 1 outputs need to be run.The output current is set to 250mA .In this AC to DC transformer, the output voltage is 12V .Approximately 4mA amps of supply current can be handled by the power AC DC.When set to 3mA , AC to DC converter consumes quiescent current.
FAN7601GX Features
Packaged with 10-SOP (0.154, 3.90mm Width)
Switching Frequency at Up to 300kHz
With 10 pins
Output Current at 250mA
FAN7601GX Applications
There are a lot of ON Semiconductor FAN7601GX AC DC Converters applications.
- AC?DC USB chargers for Tablets
- Battery chargers for media tablets
- Wall switches
- White goods
- Power Adaptors
- Air Conditioning
- Handheld/Battery-Powered Systems
- Replaces linear transformers
- Adapters for Handheld Electronics
- Standby Power for General Off-Line Applications
