FFA30UP20DNTU

  • FFA30UP20DNTU - FFA30UP20DNTU datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website
  • FFA30UP20DNTU - FFA30UP20DNTU datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website

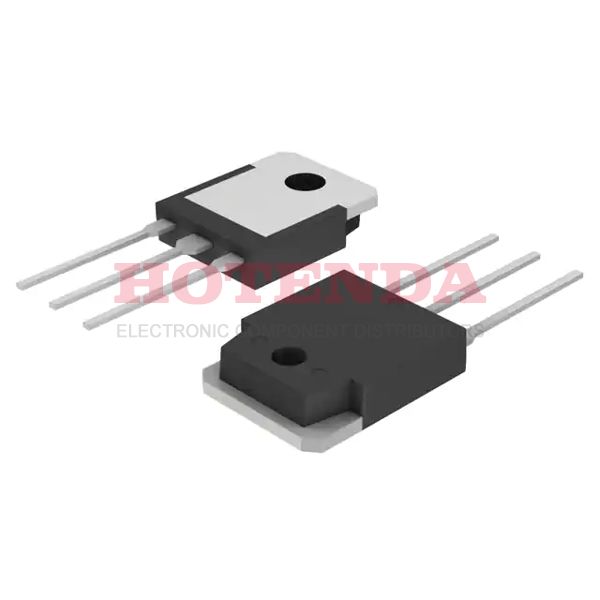

FFA30UP20DNTU

FFA30UP20DNTU

ON Semiconductor

FFA30UP20DNTU datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website

SOT-23

FFA30UP20DNTU Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Through Hole
Package / Case TO-3P-3, SC-65-3
Supplier Device Package TO-3P
PackagingTube
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 100μA @ 200V
Voltage - Forward (Vf) (Max) @ If 1.15V @ 15A
Operating Temperature - Junction -65°C~150°C
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 15A
Reverse Recovery Time 45ns
Diode Configuration 1 Pair Common Cathode
In-Stock:1338 items

FFA30UP20DNTU Product Details

FFA30UP20DNTU Overview




FFA30UP20DNTU Features



FFA30UP20DNTU Applications


There are a lot of ON Semiconductor FFA30UP20DNTU applications of rectifier diode array.

  • General Rectification
  • Rectifier for drives applications
  • Free wheeling diode in low voltage converters
  • Rectifiers in switch mode power supplies (SMPS)
  • Rectifiers for UBS
  • Battery chargers
  • Crowbar applications
