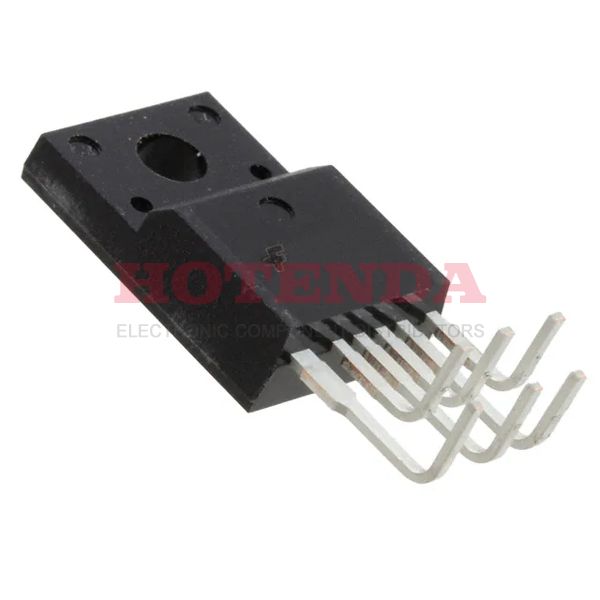

FSQ0565RSWDTU Overview
The ac to dc converter is embedded in TO-220-6 Full Pack, Formed Leads package.In Tube AC/DC power converter, it is available.The AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -25°C~85°C TA in order to ensure its performance.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.At this point, the switching frequency reaches 48kHz~67kHz .Vcc/Vdd can be used within the range of 8V~20V supply voltage.A total of 6 terminations have been recorded.In this ac/dc converter, there are 6 pins.There are no problem mounting the ac dc converters by Through Hole .The product is acdc converter of the FPS? manufacturer family.If you select the FSQ0565 family, you will be able to search for similar acdc converters.In this AC to DC transformer, there are 1 outputs to run.AC to DC converter is included in Switching Regulator or Controllers .There is 2A output current set.Under 20V , it is possible to power the AC to DC converter's input voltage.When utilizing this ACDC converter, PWM CONTROL TECHNIQUE ALSO POSSIBLE can also be discovered.Supply currents up to 5mA can be handled by this power AC DC.This power AC DC's resistance can be determined to be 2.2Ohm .Using the AC to DC power converter with the maximum output power of 60W is possible.
FSQ0565RSWDTU Features
Packaged with TO-220-6 Full Pack, Formed Leads
Switching Frequency at 48kHz~67kHz
With 6 pins
Output Current at 2A
Resistance : 2.2Ohm
FSQ0565RSWDTU Applications
There are a lot of ON Semiconductor FSQ0565RSWDTU AC DC Converters applications.
- Battery chargers for cellular phones
- Battery chargers for cordless
- Standby Power Supplies
- Standby Power Supplies
- Set Top Boxes (STB)
- Set-top boxes
- Adapters for Handheld Electronics
- Standby Power for General Off-Line Applications
- Home appliances
- Off--line Battery Charger
