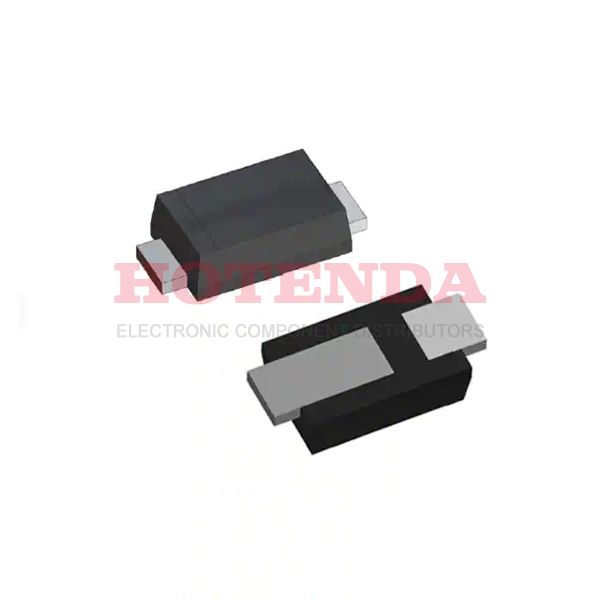

Name: FSV360FP
Brand: ON Semiconductor
SKU: FSV360FP
Availability: InStock

new-10%

FSV360FP

Manufacturer part number:FSV360FP

Manufacturer:ON Semiconductor

Description:FSV360FP datasheet pdf and Diodes - Rectifiers - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:FSV360FP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-123H
Weight	18.4mg
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2016
Series	Automotive, AEC-Q101
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-F2
Operating Temperature (Max)	150°C
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	100μA @ 60V
Voltage - Forward (Vf) (Max) @ If	650mV @ 3A
Case Connection	CATHODE
Forward Current	3A
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	3A
Application	GENERAL PURPOSE
Max Reverse Voltage (DC)	60V
Average Rectified Current	3A
Number of Phases	1
Reverse Recovery Time	10.62 ns
Max Repetitive Reverse Voltage (Vrrm)	60V
Reverse Current-Max	100μA
Max Forward Surge Current (Ifsm)	80A
RoHS Status	ROHS3 Compliant

FSV360FP Product Details

FSV360FP Overview

The average rectified current for this device is 3A volts.3A is the maximum value of forward current.Phase diode rectifier reaches 100μA when the maximum reverse current is allowed.In terms of output current, the maximum value is 3A.
