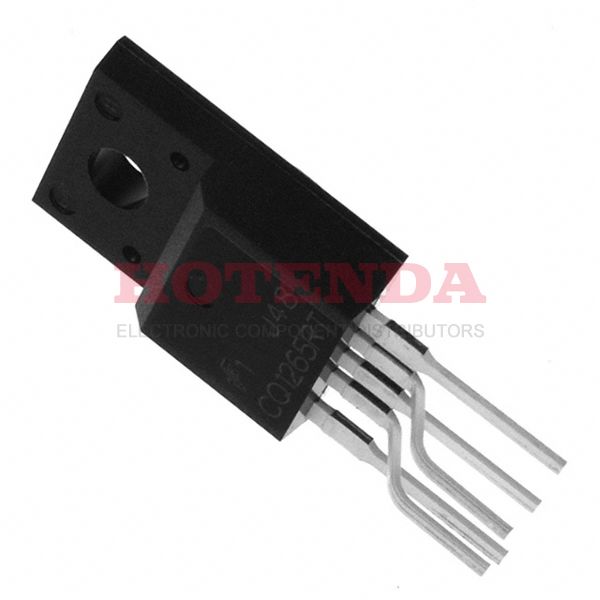

KA5Q0765RTYDTU Overview
In the TO-220-5 Full Pack (Formed Leads) package, the ac to dc converter is embedded.The AC/DC power converter type is Tube .There is a AC/DC converter mounted in the way of Through Hole .The ac dc converter needs to be operated at -25°C~85°C TA °C in order to perform.As a result, the switching frequency reaches 18kHz~22kHz .Within the range of 9V~40V supply voltage (Vcc/Vdd), it can be used.The ac/dc converter has a total of 5 pins.A member of the FPS? manufacturer family, it has the following characteristics.You can search similar acdc converters based on KA5Q0765 family.AC to DC converter is necessary to run 1 outputs.AC to DC converter is set to 3.8A for the output current.A maximum supply current of 10mA can be handled by this power AC DC.The power AC DC's resistance can be determined to be 1.3Ohm .
KA5Q0765RTYDTU Features
Packaged with TO-220-5 Full Pack (Formed Leads)
Switching Frequency at 18kHz~22kHz
With 5 pins
Output Current at 3.8A
Resistance : 1.3Ohm
KA5Q0765RTYDTU Applications
There are a lot of ON Semiconductor KA5Q0765RTYDTU AC DC Converters applications.
- Switching AC-DC Charger
- Adapters
- Tablets
- Auxiliary Power Supplies
- Linear Adapter Replacements
- Off--line Battery Charger
- Laptops
- Adapter/Charger for Cell
- Shaver Charger
- Standby Power Supply
